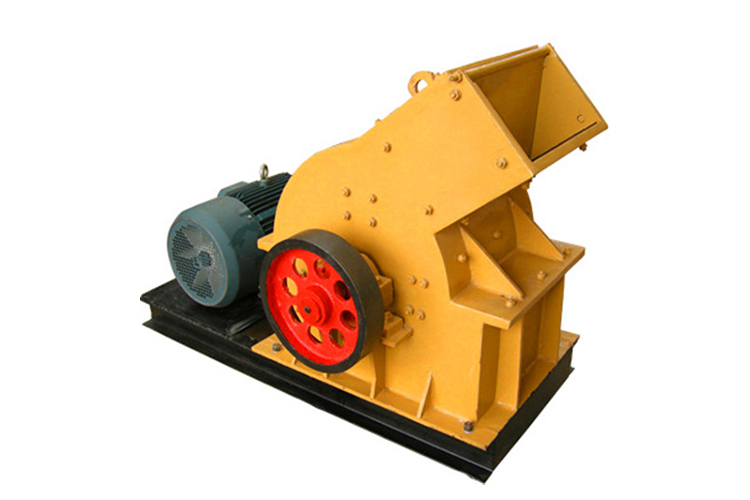

The hammer crusher crushes by the collisions between high-speed hammer and material, and the hammer crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum & chemical industries.
advantage Durable and sturdy, with low energy consumption
Get a Quick Quote & Free Consultation →

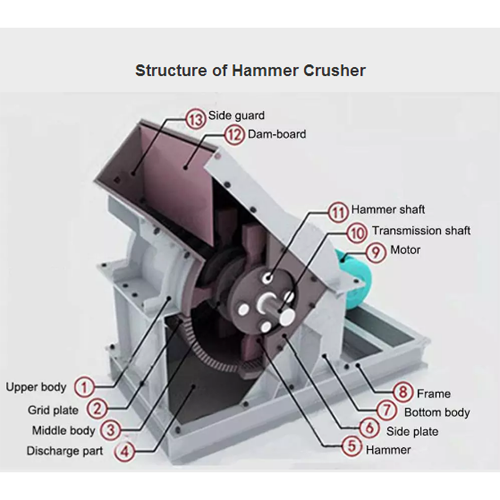

The motor drives the rotor rotates of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size
Model | Rotor Speed (r/min) | Feed Opening Size (mm) | Max Feeding Size (mm) | Discharghing Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall Dimensions L×W×H (mm) |
PC400*400 | 1500 | 145×295 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844*942*878 |
PC600*400 | 1000 | 295×450 | 100 | 0-35 | 10-12 | 18.5 | 1.5 | 1000*1000*1300 |
PC600*600 | 1000 | 295×570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315*840*1501 |
PC800*600 | 1000 | 350×570 | 120 | 0-45 | 20-25 | 55 | 2.45 | 1515*2586*1040 |
PC800*800 | 1000 | 350×850 | 120 | 0-45 | 35-45 | 55 | 3.05 | 1515*2831*1040 |
PC1000*800 | 1000 | 580×580 | 200 | 0-45 | 25-40 | 110 | 6.5 | 3206*2210*1515 |
PC1000*1000 | 1000 | 580×1060 | 200 | 0-45 | 40-80 | 132 | 7.59 | 3514*2230*1515 |
PC1250*800 | 750 | 650×850 | 200 | 0-45 | 20-50 | 132 | 11.7 | 2630*1780*2050 |
PC1250*1250 | 750 | 650×1330 | 200 | 0-45 | 90-110 | 185 | 13.2 | 2630*2180*2050 |
PC1400*1400 | 750 | 1050×1540 | 250 | 0-45 | 120-170 | 280 | 17.2 | 2790*2800*2310 |
PC1600*1600 | 600 | 1500×1785 | 350 | 0-60 | 220-280 | 450 | 22.8 | 3350*3120*2660 |
