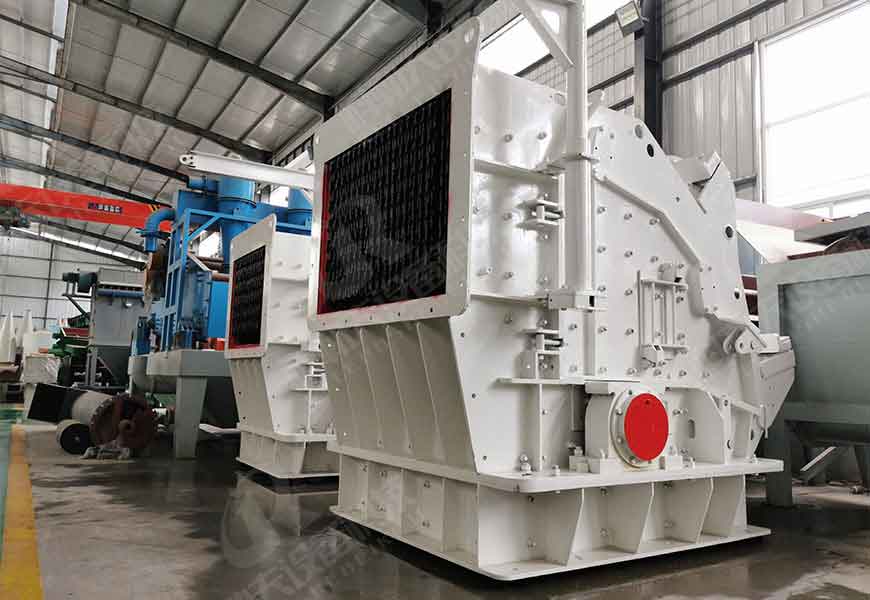

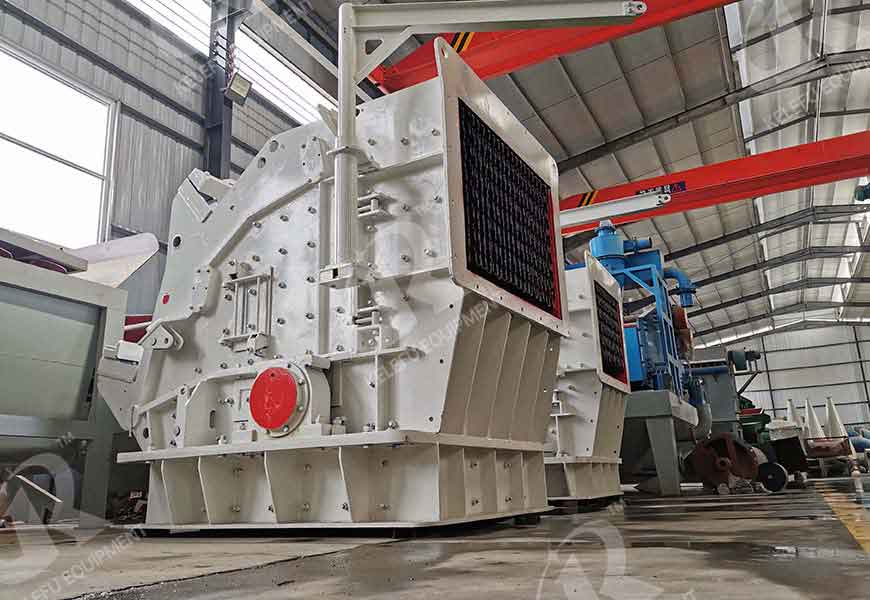

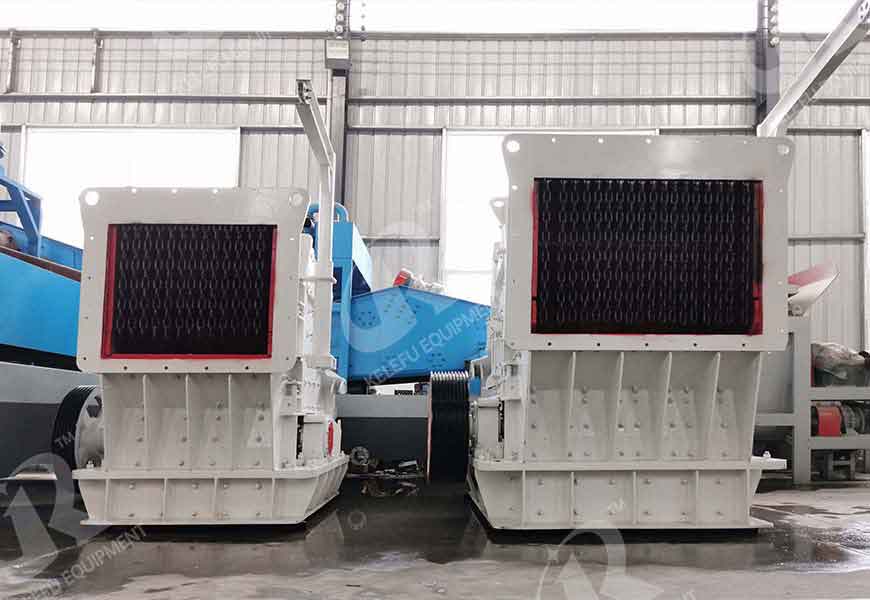

The large caliber European version impact crusher is also known as the large mouth impact crusher or impact crusher. This machine absorbs the advantages of foreign impact crusher, combined with the old type of impact crusher developed, the equipment uses impact energy to crush materials.
advantage Durable and sturdy, with low energy consumption
Applicable materials：The compressive degree is not more than 300Mpa, surface moisture is not more than 8%-10% of the ore, rock.
Get a Quick Quote & Free Consultation →
Heavy-duty high-efficiency large-caliber impact crusher is a new generation of impact crusher developed on the basis of traditional impact crusher combined with the specific mining conditions of sand and gravel industry. Compared with traditional impact crusher, it can not only ensure the advantages of impact granulation-breaking type, but also greatly improve the crushing ratio and output. It is mainly used in water and electricity, highway, building materials waste treatment and artificial construction aggregate processing.

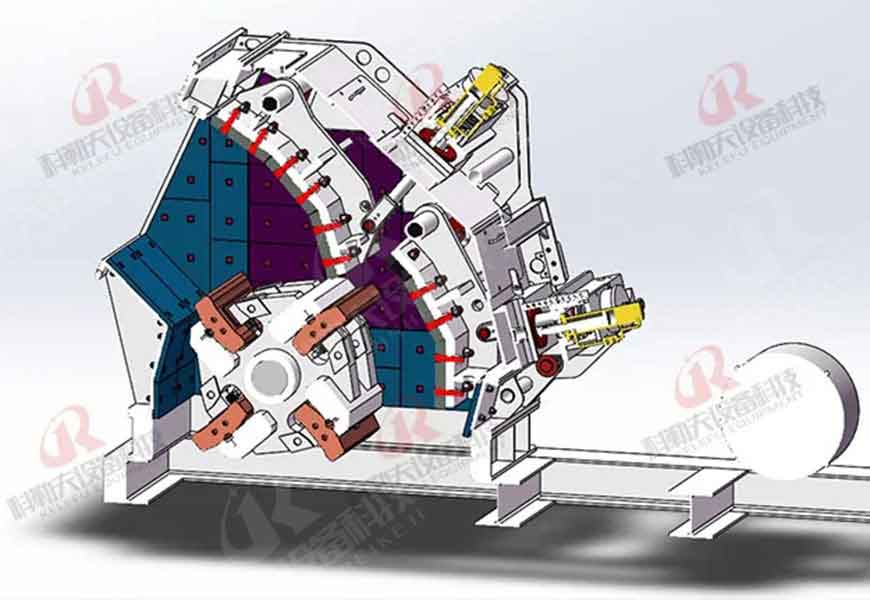

A crushing machine that uses impact energy to break materials. When working, the motor drives the rotor to rotate at high speed. When the material enters the plate hammer, it is broken by the high speed impact of the plate hammer. The broken material is thrown to the counter plate installed above the rotor along the tangential direction and broken again, and then springs back from the counter plate to the plate hammer action area and broken again. This process is repeated until the material is broken to the desired size and discharged through the discharge port. Adjusting the clearance between the counter frame and the rotor can achieve the purpose of changing the size and shape of the material.
| specification/ project | Rotor size(mm) | Maximum feed size (mm) | Discharge size(mm) | production capacity(m3/h) | installed power(kw) | |
| -150Mpa | -250Mpa | |||||
| PFQ0808 | ф850×750 | 200 | 150 | 25(80-90%) | 40 | -55 |
| PFQ1108 | ф1040×750 | 300 | 180 | 30(80-90%) | 95 | -90 |
| PFQ1110 | ф1040×1000 | 400 | 200 | 35(80-90%) | 110 | -110 |
| PFQ1310 | ф1280×1000 | 500 | 250 | 40(80-90%) | 175 | -160 |
| PFQ1313 | ф1280×1250 | 600 | 250 | 40(80-90%) | 220 | -220 |
| PFQ1315 | ф1280×1500 | 700 | 300 | 50(80-90%) | 285 | -300 |
| PFQ1515 | ф1450×1500 | 1000 | 350 | 50(80-90%) | 400 | -400 |
| PFQ1520 | ф1450×2000 | 1000 | 400 | 50(80-90%) | 540 | -550 |
