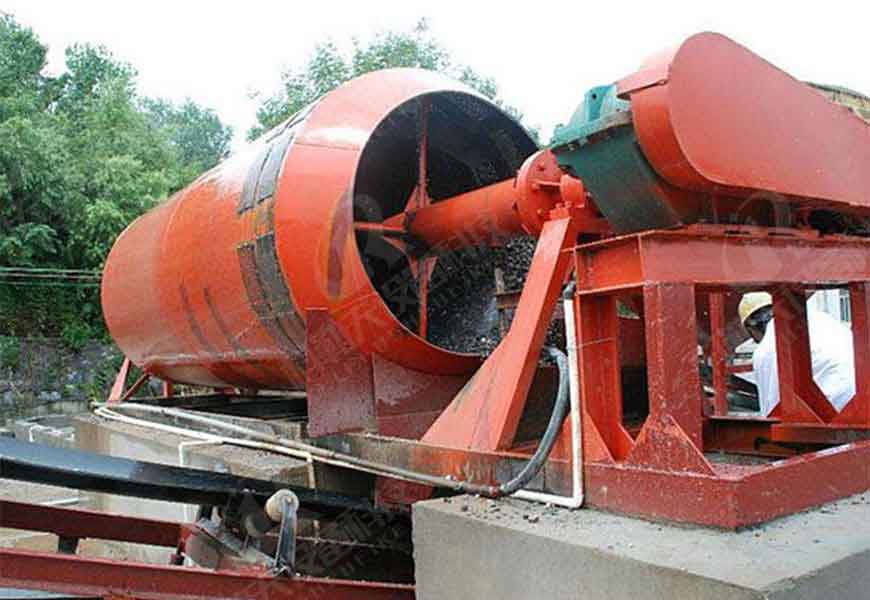

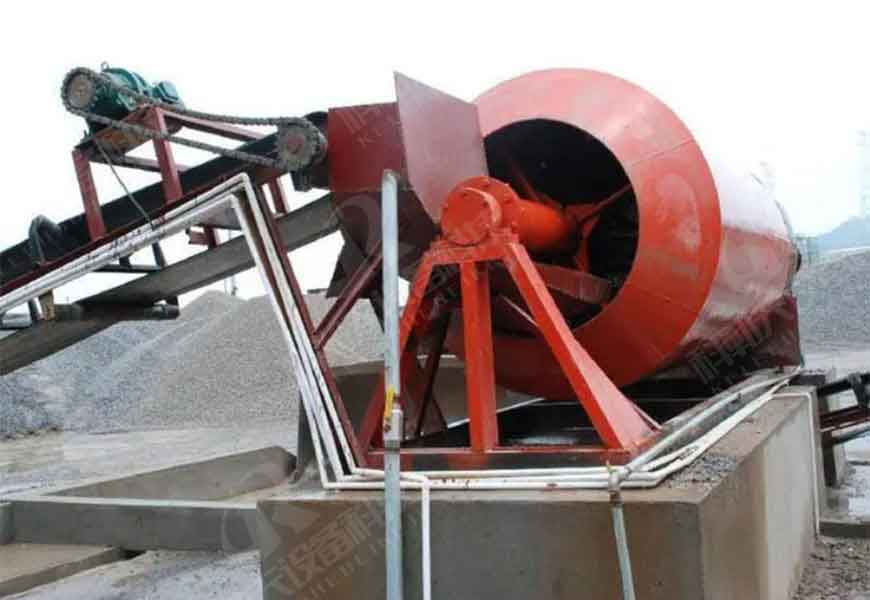

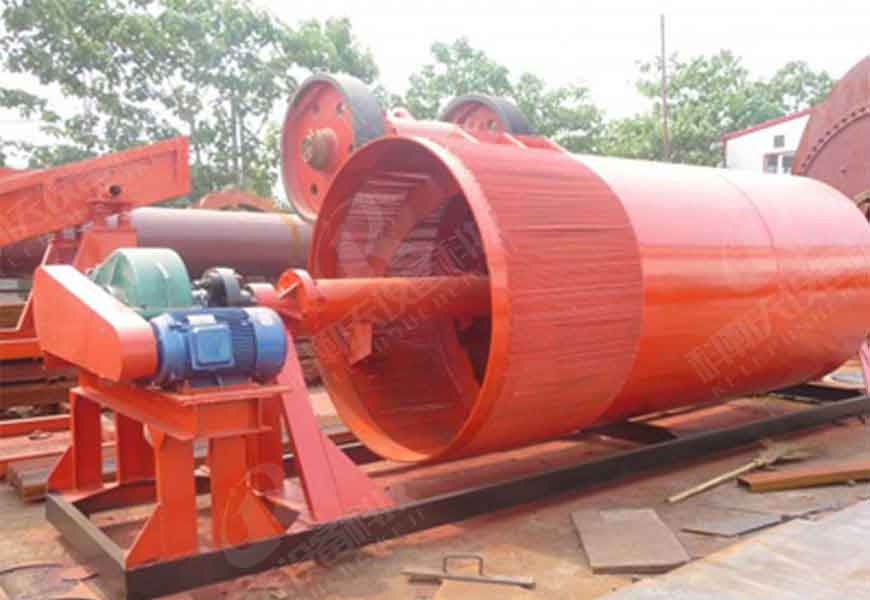

The roller sand washing machine is a new generation of practical products with energy saving, high efficiency and low maintenance rate, which has been redesigned, manufactured, experimented and successfully developed on the basis of the traditional stone washing equipment.
advantage Durable and sturdy, with low energy consumption
Applicable materials：It is often used for sand and stones cleaning in beam field, prefabricated plate factory, bridge and mixing station.
Get a Quick Quote & Free Consultation →
Simple structure, reduce the failure rate, less loss of stone powder in the sand washing process, sand gradation and fineness modulus meet the standard requirements. High cleaning degree, large processing capacity, stable operation, small power consumption, long service life, suitable for a variety of working environment.
The motor drives the roller screen to rotate slowly after decelerating through the triangle belt, reducer and gear. The stone loader is loaded into the hopper, rolled under the drive of the roller screen, and grind each other to remove the impurities covering the surface of the stone. At the same time, water is added to form a strong flow of water, and the impurities and foreign bodies with small proportion are taken away in time and discharged from the overflow outlet washing tank to complete the cleaning function. The stones cleaned by the roller stone washing machine are taken away by the conveyor belt to complete the cleaning function of the sand and stone.
| specification | centre drive | Edge drive | ||||
| model | GXZ1542 | GXZ1842 | GXZ2042 | GXB2066 | GXB2266 | GXB2566 |
| Feed size（mm） | ＜60 | ＜80 | ＜90 | ＜90 | ＜100 | ＜120 |
| rotate speed（r/min） | 11-13 | 10-12 | 9-11 | 9-12 | 8-10 | 6-8 |
| rate of work（kw） | 15 | 18.5 | 22 | 22 | 30 | 37 |
| handling capacity（t/h） | 50-80 | 80-100 | 100-150 | 120-160 | 150-200 | 200-250 |
| boundary dimension（mm） | 6705x1738 x2180 | 6705x1938 x2200 | 6705x2138 x2220 | 6600x4400 x2565 | 6600x4600 x2765 | |
