Feed Pellet Machine

Product Introduction

Turn your own corn, soybean meal, alfalfa, rice husk, and straw into high-density feed pellets with this durable flat die pellet mill. Designed for small to medium farms and home feed processing, it eliminates reliance on expensive commercial feed. By controlling ingredient selection and grinding, you lower feed costs by up to 50%, improve livestock digestibility, and accelerate weight gain. The heavy-duty gearbox, CE-certified motor, and quick-change die system ensure this machine delivers a fast return on investment with minimal maintenance.

Why Choose Us

Why Choose Our Feed Pellet Machine?

Drastic Feed Cost Reduction: Independent farms report saving 40–50% on feed costs after switching to on-site pelleting. A single harvest of raw ingredients can be turned into months of balanced feed.
Precision Pellet Quality: 20CrMnTi alloy steel rollers and dies undergo vacuum heat treatment to reach HRC58-62 hardness. Pellets come out smooth, dense, and uniform in diameter (2–12mm interchangeable), minimizing powder waste below 3%.
Wide Material Compatibility: Proven with 20+ materials — corn, wheat bran, soy cake, grass powder, peanut shell, rice straw, alfalfa, and even aquatic feed blends. Vitamins and minerals can be mixed directly.
Engineered for Continuous Duty: ZQ series heavy-duty oil-bath gearbox, paired with NSK/SKF bearings and a 45# forged main shaft. Designed for 24-hour operation with a forming rate ≥95%.
Low-Skill Operation, High Safety: Pre-assembled, plug-and-play design. Enclosed body with dust-proof seals, emergency stop, and overload auto-stop. One person can manage the full process.
Flexible Power Choices: Standard electric motor (220V/380V/440V/480V customizable), diesel engine, or tractor PTO drive. Ready for farms with unreliable grid power.

Technical Parameter

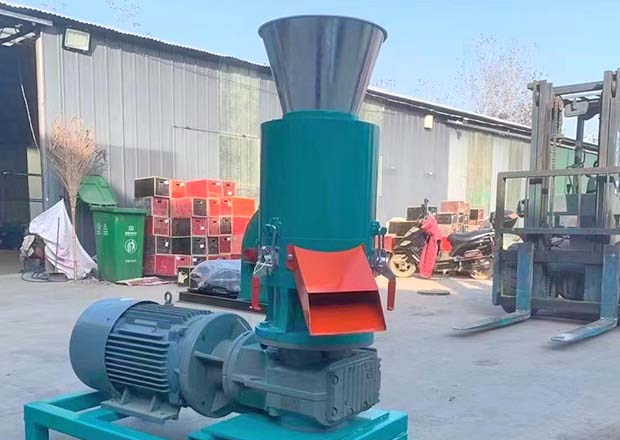

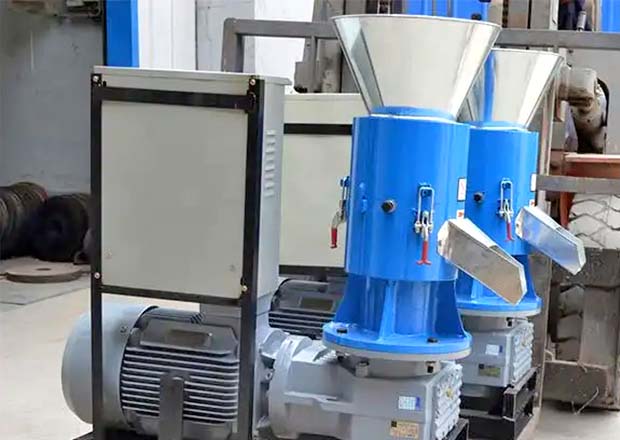

Detailed Technical Specifications – Main Hot-Selling Model FL-300
*(This table reflects the most ordered configuration. More models from 150 kg/h to 1500 kg/h are available.)*

Model: FL-300 Flat Die Feed Pellet Mill
Output Capacity: 600–800 kg/h (based on corn, Φ6mm die, moisture 10–13%)
Pellet Diameter Range: 2 / 3 / 4 / 6 / 8 / 10 / 12 mm (interchangeable flat dies)
Forming Rate: ≥95%
Pellet Density: 1.1–1.3 g/cm³ (high-density pellet that sinks in water, ideal for fish)
Main Motor Power: 37 kW (50 HP) — 3-phase electric. Voltage can be specified.
Rollers & Die Material: 20CrMnTi alloy steel, vacuum carburizing + quenching, HRC58-62
Die Service Life: Approx. 800–1,000 tons of output (single die)
Number of Rollers: 2 (extra set of rollers included as free spare)
Bearing Brand: NSK / SKF (Japanese or Swedish, specified before shipment)
Gearbox: ZQ-350 heavy-duty enclosed oil-bath type, ≤75dB noise
Feeding Mode: Gravity hopper with manual gate; automatic screw conveyor available (optional)
Pellet Discharge: Gravity fall, directly into bag or bucket
Machine Weight: 720 kg (net), ~850 kg (gross in wooden crate)
Machine Dimension (L×W×H): 1650×750×1600 mm
Raw Material Moisture Requirement: 10–15% (if higher, a dryer is recommended)
Power Customization: Diesel engine (Lister/Petter/Chinese brands) or PTO shaft are fully supported.

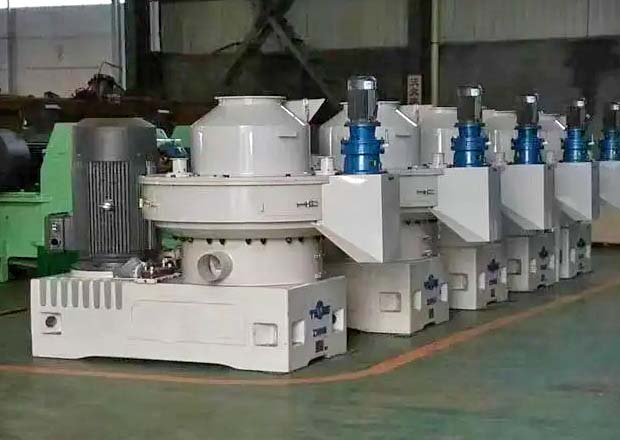

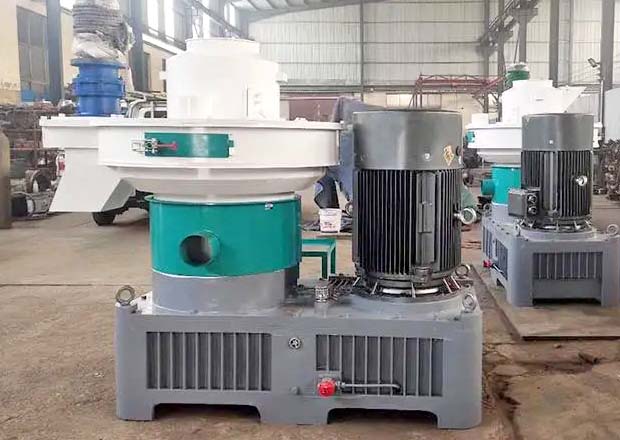

Larger Capacity Models: FL-400 (1000–1500 kg/h) and ring die lines (1–20 ton/h) available.

Proven Results Backed by Data

We have exported to over 45 countries since 2009 and continuously collect feedback from real users.

40–50% Feed Savings: Based on a 2024 survey among 120 poultry farmers in Kenya, Nigeria, and the Philippines, those who switched to our pellet machine reduced their monthly feed purchase volume by half.
15% Faster Time-to-Market: Homemade pellets with fresh, high-oil ingredients increase broiler weight gain speed by 10–15%, helping farmers sell earlier.
98% Operational Uptime: With simple greasing and die cleaning, users report an average of 350 production days per year.
Multi-Animal Profitability: One machine serves chicken, pig, cattle, and fish with a simple die swap, maximizing equipment utilization.

Applicable

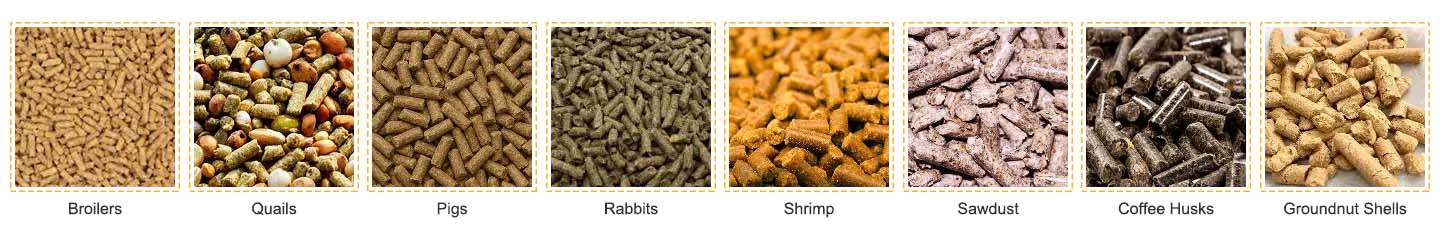

Perfect for producing feed pellets for broilers, layers, turkeys, quails, pigs, cattle, goats, sheep, rabbits, horses, and fish/shrimp. Also capable of making biomass fuel pellets from sawdust, coffee husks, and groundnut shells with an extra die set. Ideal for family farms, feed processing shops, breeding cooperatives, and small agribusinesses.

FAQ

Can I make pellets for different animals with one machine? Yes. Simply change the die. We recommend 2–4mm for chicks and layers, 5–8mm for pigs and sheep, 8–12mm for cattle. We provide a complete guide.

What about the pellet forming rate? Is there much waste? The forming rate is ≥95% under proper moisture and raw material size. The few unformed powders can be sieved and re-processed directly.

Is it hard to install? It arrives fully assembled. You just position it on a flat, dry floor, connect the power, and follow our video guide. Setup takes about 15 minutes.

Which raw materials can I use? Maize, wheat, rice bran, soybean meal, cottonseed cake, alfalfa hay, straw, grass powder, and more. A 2–8mm hammer mill powder is recommended for best results.

What is your warranty and spare parts policy? 12-month warranty on the machine body and gearbox from the shipment date. We stock rollers, dies, and bearings at all times. Spare parts can be shipped together with the machine or expressed later within 3–7 days.

How do I place an order and pay? We accept T/T (bank transfer), L/C at sight, and Western Union for small samples. Standard process: 30% deposit to start production, 70% balance paid before shipment after factory inspection video confirmation.

Order & Shipping Information

Complete Customization: Motor voltage, diesel engine brand, machine color, and pellet size are all built to your requirements.
Safe Export Packing: Fumigated free wooden crate or iron frame packing. Every machine is fixed with bolts and protected with VCI anti-rust film.
Fast Delivery: Standard models ship within 7–10 working days. Sea freight to major ports takes 15–35 days. Air express available for urgent orders.
After-Sales Service: Lifetime technical support via WhatsApp/Email. Video call assistance for troubleshooting and maintenance guidance.

Take Control of Your Feed Costs Today
Don’t let rising feed prices determine your profit. Invest in a machine that turns locally available raw materials into high-quality animal feed. Send an inquiry now and receive a detailed quotation, a customized production video, and a free “Start Your Own Feed Pellet Business” guide within 12 hours.
