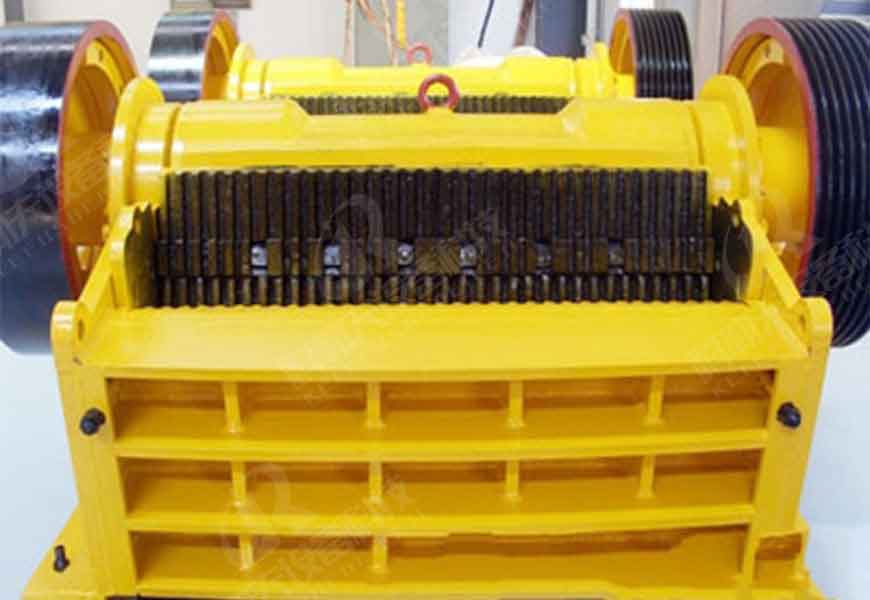

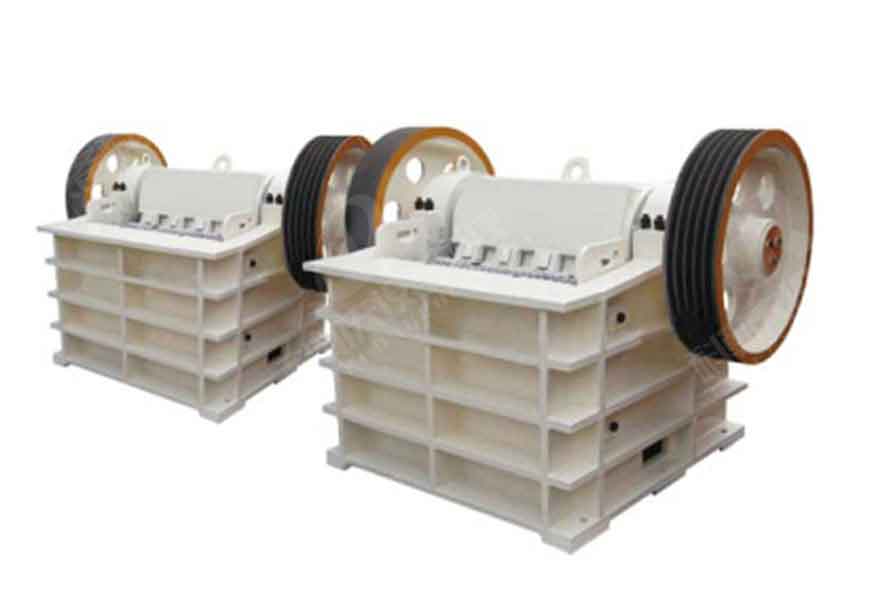

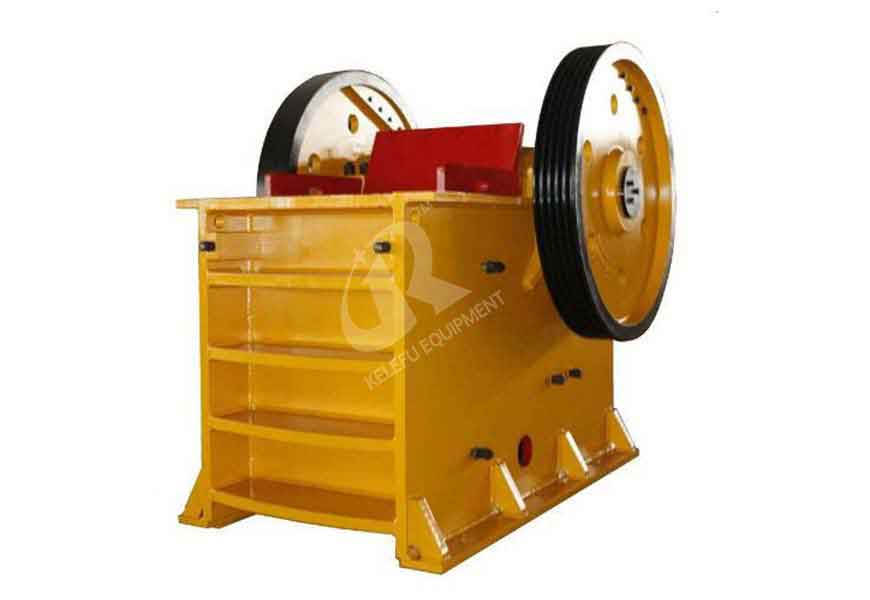

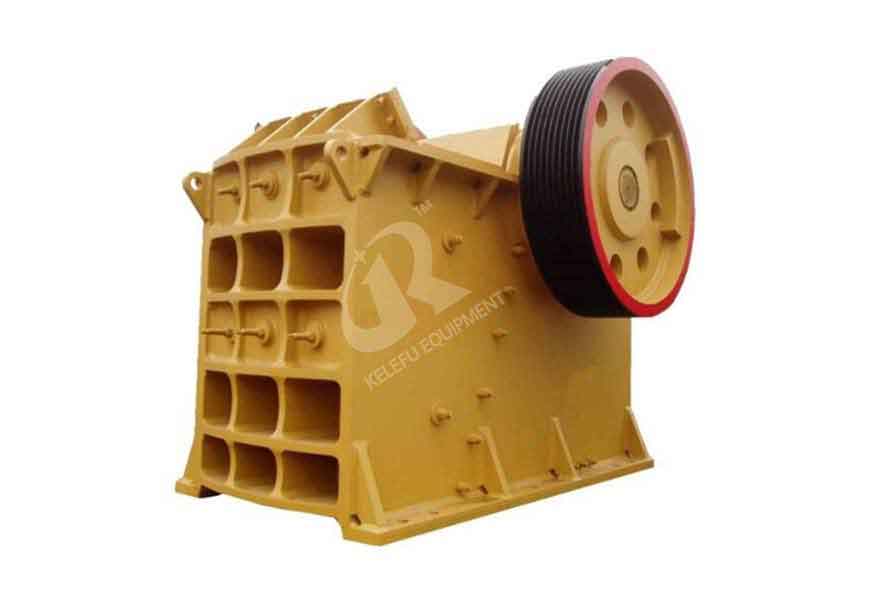

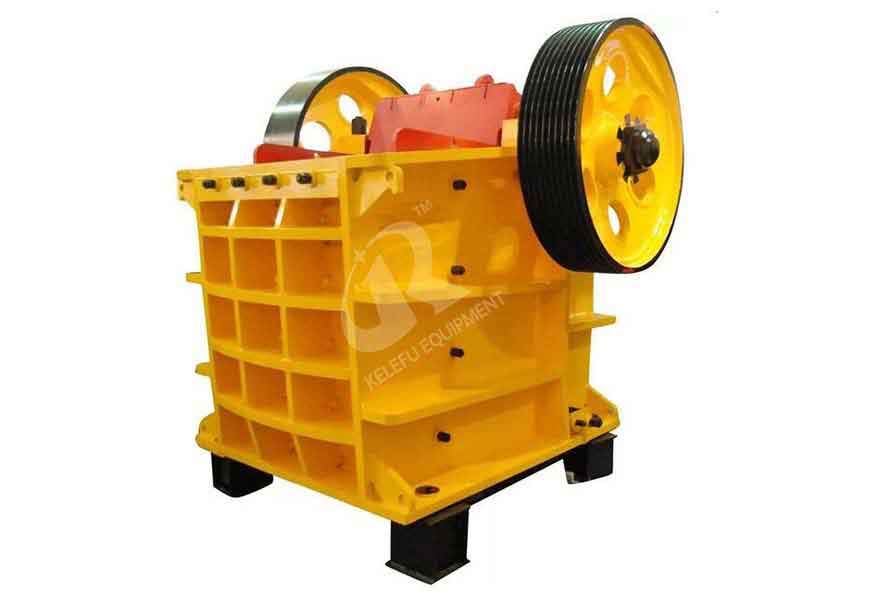

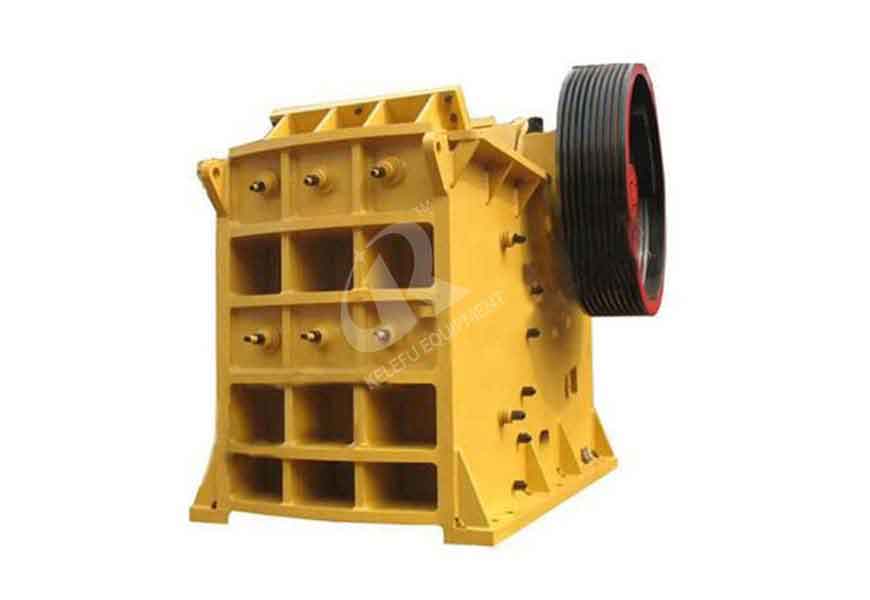

Fine type jaw crusher is suitable for metallurgy, mining, construction and railway departments, as the initial crushing, crushing compressive strength of all kinds of ore or rock below 250MPa, with large crushing ratio, uniform particle size of finished products, low power consumption, easy maintenance and so on.
advantage Durable and sturdy, with low energy consumption
Applicable materials：River pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, coal gangue, pebbles, basalt and so on.
Get a Quick Quote & Free Consultation →
The structure is simple and reasonable, the operation cost is low, the wear is small, has the function of fine crushing and coarse grinding. Suitable for crushing medium hard, extra hard materials, working noise less than 75 decibels (db level), less dust pollution. Products into cubes, bulk density, minimal iron pollution, high crushing rate, energy saving, impeller self lining wear small, easy maintenance.
When jaw crusher is working, the motor drives the eccentric shaft through the pulley to rotate, so that the moving jaw is close to and away from the fixed jaw periodically, and the material is broken into evenly sized gravel. Usually, the equipment will crush, rub, roll and other multiple crushing materials, so that the material is gradually falling from large to small, until it is discharged from the discharge port.
| model | Feeding port size(mm） | Maximum feed size (mm) | Discharge port adjustment range (mm) | Capacity(t/h) | Eccentric shaft speed(r/min) | power of motor(kw) | total weight(t) |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 4P 15 | 3.8 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 6P 22 | 5.5 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 6P 30 | 7 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 6P 37 | 9.7 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 6P 55 | 15.6 |
