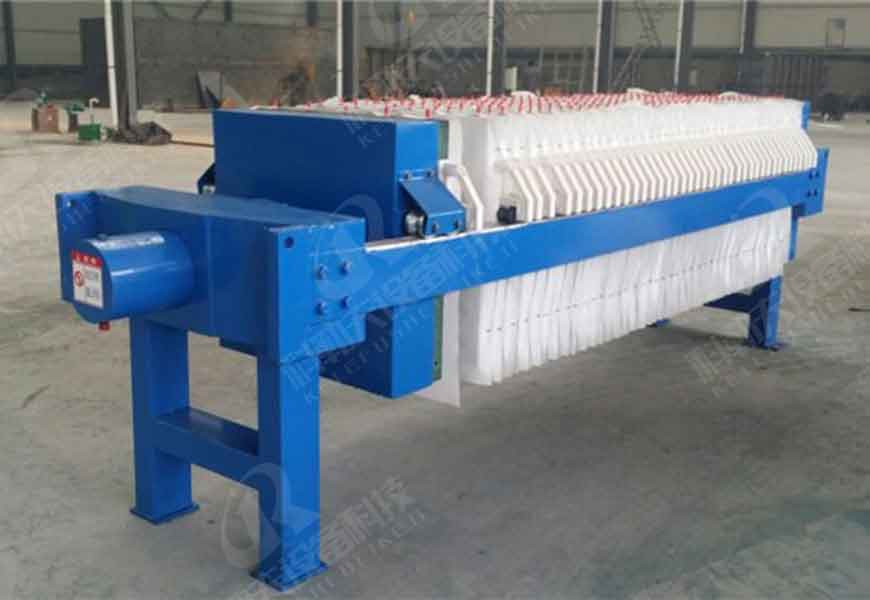

Plate And Frame Filter Press

Applicable Material

Pressurized closed filtration, less filtration loss, good filtration quality, high efficiency The plate and frame filter press uses the pressure difference between the two sides of the filter cloth to force most of the water in the material to pass through the filter cloth and flow out of the body, while the material is blocked in the filter chamber to form filter cake, so as to achieve the purpose of filtering. Because there is a large pressure difference between the two sides of the filter cloth in the filtration process, the filtration speed is increased and the water content of the filter cake is reduced. Moreover, the special filter cloth is used to clarify the filtrate, and the filtration effect is much more ideal than that of the vacuum filter.

Product Features

Working Principle

Plate frame filter press is through the extrusion of the filter plate, so that the water in the sludge is discharged through the filter cloth, so as to achieve the purpose of dehydration. Also known as slurry dehydration, that is, a certain number of filter plate under the action of strong mechanical force is closely arranged in a row, filter plate surface and filter surface between the filter chamber, filter material is sent into the filter chamber under strong positive pressure, the solid part of the filter material into the filter chamber is intercepted by the filter medium (such as filter cloth) to form filter cake, liquid part through the filter medium and discharged into the filter chamber. So as to achieve the purpose of solid-liquid separation.

Technical Parameter
