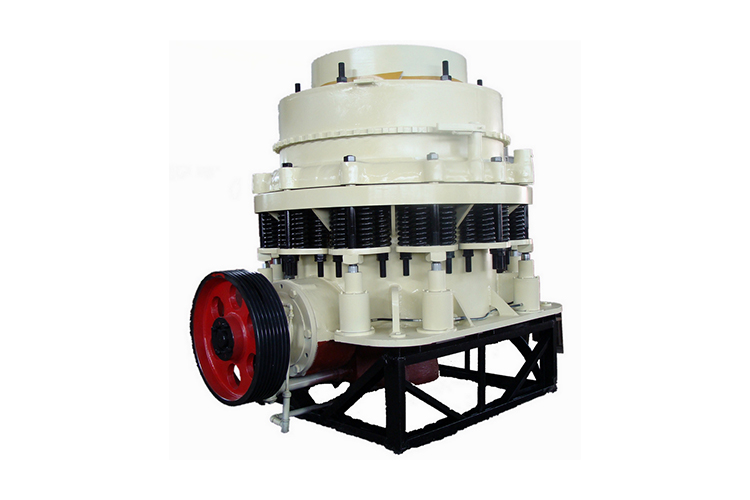

Spring cone crusher is suitable for crushing all kinds of ores and rocks of medium hardness.Reliable structure,high production efficiency,easy adjustment,economic characteristics.The spring system is the overload protection device,allows foreign body iron through the crushing chamber without damage to the machine ,the use of dry oil or water form of two kinds of sealed ,powder and lubricants isolation,to ensure reliable operation.The type of crushing chamber is determined by the ore use,the standard form applies to intermediate crushing,the short head model is suitable for fine grinding.
advantage Durable and sturdy, with low energy consumption
Get a Quick Quote & Free Consultation →

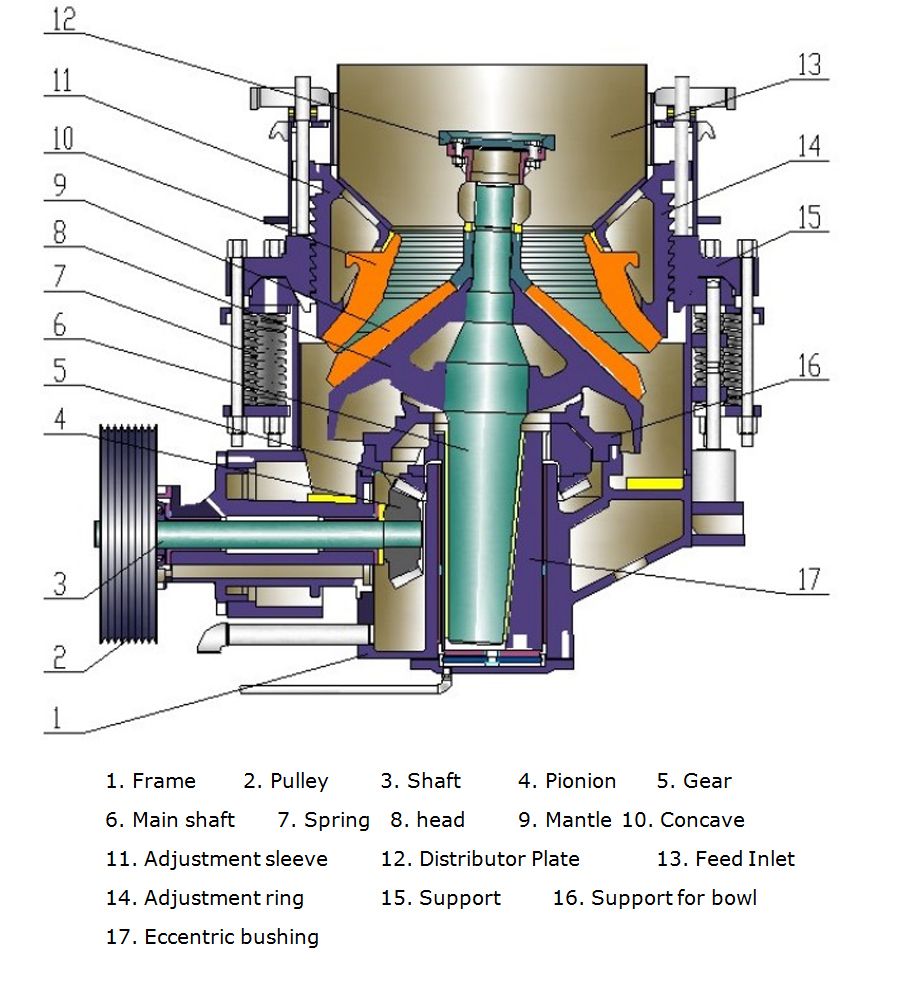

When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Model | Diameter of moving cone(mm) | Feeding open(mm) | Discharge opening (mm) | Capacity (tph) | Weight (t) | Power (kW) | Overall dimensions (mm)） |
PYB600 | 600 | 65 | 12--25 | 40 | 5 | 30 | 2234x1370x1675 |
PYD600 | 35 | 3--13 | 12--23 | 5.5 | |||
PYB900 | 600 | 115 | 15-50 | 50-90 | 11.2 | 55 | 2692x1640x2350 |
PYZ900 | 60 | 5--20 | 20-65 | 11.2 | |||
PYD900 | 40 | 3--13 | 15-50 | 11.3 | |||
PYB1200 | 1200 | 145 | 20-50 | 110-168 | 24.7 | 110 | 2790x1878x2844 |
PYZ1200 | 100 | 8---16 | 42-135 | 25 | |||
PYD1200 | 50 | 3--15 | 18-105 | 25.3 | |||
PYB1750 | 1750 | 215 | 25-50 | 180-360 | 50.3 | 160 | 3910x2894x3809 |
PYZ1750 | 185 | 10--30 | 80-210 | 50.3 | |||
PYD1750 | 85 | 5--15 | 60-180 | 50.2 | |||
PYB2200 | 2200 | 300 | 30-60 | 420-700 | 90 | 280 | 4622x3302x4470 |
PYZ2200 | 230 | 10--30 | 130-410 | 80 | |||
PYD2200 | 100 | 5--16 | 80-200 | 81.4 |
