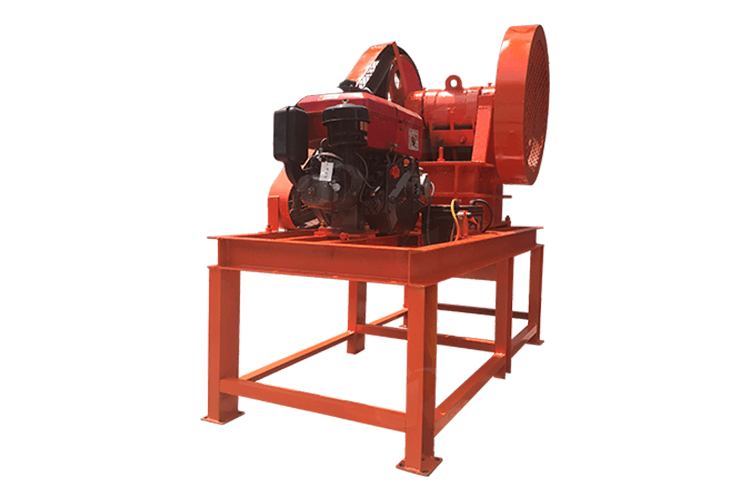

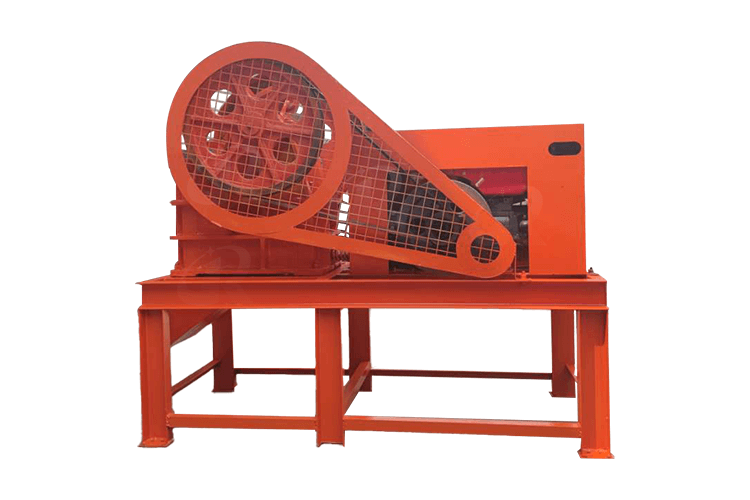

Mobile Diesel Jaw Crusher
Mobile Diesel Jaw Crusher

Mobile Diesel Jaw Crusher

There are three types of small jaw crushers in our company: small jaw crusher with electric motor, small jaw crusher with diesel engine, they can be set as fixed and mobile type; and there is a simple mobile station - small portable mobile jaw crusher with vibrating screen.

advantage Durable and sturdy, with low energy consumption

  • Input size 130-340mm
  • Output size 10-100mm
  • Capacity 1-64t/h
  • Engine 12-40HP

Get a Quick Quote & Free Consultation →

24h Response Factory Direct Global Shipping

Applicable Material

Mobile Diesel Jaw Crusher

Mobile diesel crusher is a kind of main rock crushing equipment, with screening system, integrated small mobile crushing station, using diesel engine to generate electricity, suitable for areas without electricity, low cost, easy to operate, and free to move;widely used in various industries, such as mining, road and railway construction, building construction, water conservation, the chemical industry, etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore, etc.

Product Features

Simple and reliable structure,low operation costs

Working Principle

Mobile Diesel Jaw Crusher

Material from the upper part of the machine vertically falls into the high-speed rotating impeller under the action of high-speed centrifugal force. Another part of the material in the form of umbrella-like flow around the impeller to produce high-speed impact and smash to the material. Then in the impeller and the vortexes between the casings are formed by reciprocating impact, friction and comminution of the materials. The materials discharged through the lower part to form a closed-circuit multi-cycle, which is controlled by the screening equipment to achieve the required finished particle size.

Technical Parameter

ModelFeeder Opening Size(mm)Max. Feeding Size (mm)Discharging Opening Size(mm)Capacity (t/h) Engine (hp)Overall Dimension (mm)
PE150x250150x25013010-451-412896x745x935
PE200x300200x30018015-502-615910x750x990
PE200x350200x35018018-703-10181000x870x990
PE250x400250x40021025-605-20251300X1090X1270
    PE400X600400X60034040-10016-64 401730X1730X1630
