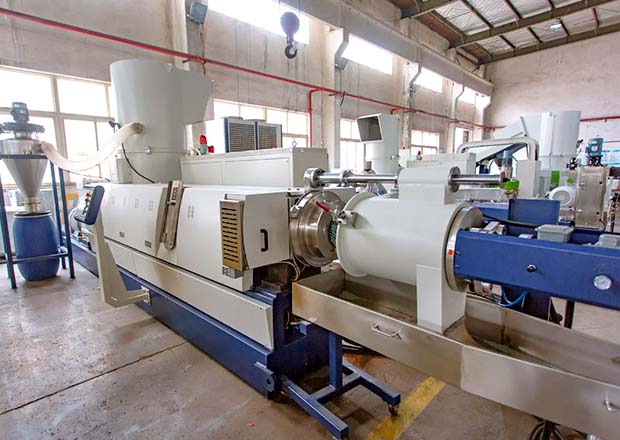

Plastic Pelletizing Machine

The Plastic Pelletizing Machine is a comprehensive extrusion and cutting system that converts cleaned, shredded plastic scrap into uniform, cylindrical or spherical pellets ready for direct reuse in injection molding, blow molding, or film extrusion. Unlike simple grinding, pelletizing involves controlled melting, high-precision filtration, vacuum degassing, and automated cutting — every step engineered to produce recycled pellets that rival virgin resin in consistency, appearance, and processability. Whether your feedstock is rigid HDPE crates, flexible LDPE film, PP woven bags, PET bottle flakes, ABS electronic housings, or post-industrial purgings, our machines deliver stable output, minimal material degradation, and pellets that sell at premium prices in the circular economy market.

• Cut Raw Material Costs by 40–60% Permanently: By pelletizing your own factory scrap or locally sourced waste, you dramatically reduce or eliminate purchases of expensive virgin plastic. The machine typically pays for itself in material savings within 6–12 months.

• Universal Polymer Compatibility: Our pelletizing lines are configured specifically for your material — polyolefins (PP, HDPE, LDPE, LLDPE), engineering plastics (ABS, PS, PC, PA), polyesters (PET), and even flexible or rigid PVC. The screw geometry, barrel venting, and die design are optimized to prevent thermal degradation and ensure stable plasticization.

• High-Purity Pellets That Match Virgin Quality: Multi-stage melt filtration (80–200 mesh) removes paper labels, metal fragments, wood splinters, and unmelted gel particles. The result is pellets with contamination levels below 0.1%, clean enough for high-end packaging, consumer goods, and export markets.

• Moisture-Free, Bubble-Free Pellets: Dual-zone vacuum degassing extracts residual moisture, printing ink solvents, and monomer gases from the melt before it reaches the die. This prevents internal bubbles, surface splay, and brittleness in the final pellet — essential for PET and hygroscopic materials.

• Choose Your Pelletizing System:

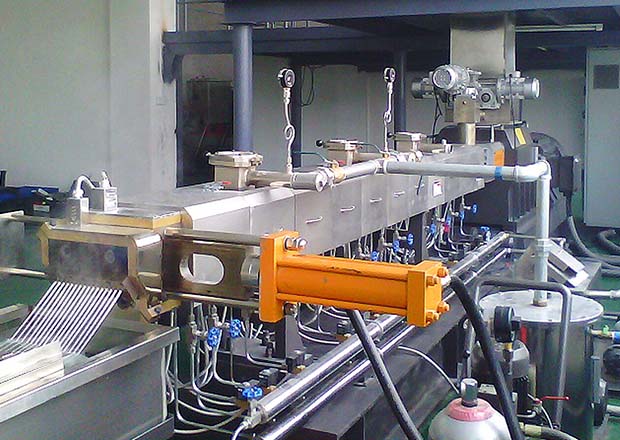

  • Strand Pelletizing: Water-cooled strands are drawn through a trough, dried, and cut into precise 3–4mm cylinders. Ideal for frequent material or color changes; easy to clean and maintain.

  • Water-Ring Hot-Face Pelletizing: Melt is cut immediately at the die face and cooled in a water ring. Compact, fully automated, and perfect for high-volume PE/PP films and washed flakes.

• Industrial Heavy-Duty for 24/7 Operation: Bimetallic screw and barrel (HRC60-65), high-torque helical gearbox, and Siemens/ABB motor drive ensure years of trouble-free production. Ceramic band heaters with PID control maintain temperature within ±1°C across all zones.

• Complete Turnkey Solutions Available: Beyond the pelletizing machine itself, we supply the full upstream and downstream equipment: crusher, friction washer, centrifugal dryer, silo, and automatic weighing/bagging station. Start production the day the line is installed.

Proven Pelletizing Performance in Real Recycling Operations：

• 40–60% Virgin Material Replacement: Manufacturers pelletizing their own in-house scrap report cutting new polymer purchases by nearly half, saving an average of $50,000–$200,000 per year depending on production volume.

• Full Investment Recovery in 6–12 Months: The combined savings from reduced virgin material purchases and eliminated waste hauling fees typically recover the entire pelletizing line cost within the first year of operation.

• Premium Prices for Clean Pellets: Recyclers producing washed, pelletized LDPE film pellets sell at $600–$900/ton; HDPE bottle pellets at $800–$1,200/ton; and ABS/PS engineering pellets at $1,000–$1,500/ton, generating strong profit margins from low-cost waste feedstock.

• Export-Grade Pellet Quality: With contamination consistently under 0.1%, our users' pellets meet the strict recycled content standards of European and North American buyers, opening access to lucrative export markets.

• Over 340 Days of Uptime Annually: With scheduled screen changes and basic lubrication, operators report excellent reliability even when processing heavily printed, moist, or mixed-color post-consumer plastic waste.

Applications: Which Plastics Can Your Machine Pelletize?
This Plastic Pelletizing Machine is engineered to process a comprehensive range of thermoplastics from both post-industrial and post-consumer sources:

• Polyolefins: PP (crates, buckets, pipes, auto parts), HDPE (bottles, caps, containers), LDPE/LLDPE (agricultural film, shrink wrap, shopping bags)

• Engineering Plastics: ABS (electronic housings, automotive trim), PS/HIPS (yogurt cups, appliance panels), PC, PA/nylon (textile waste, carpet fiber)

• Polyester: PET bottle flakes (water/soda bottles, food trays), polyester fiber waste

• Flexible & Rigid PVC: Window profiles, pipes, cable sheathing (specialized venting and screw design required)

• Other Recyclable Polymers: EVA, PMMA, POM, TPE waste from footwear and industrial production

Our technical team guides you on the optimal screw design, filtration fineness, and pelletizing method for your specific material mix.

Customize Your Plastic Pelletizing Line
Send us details about your plastic waste type, estimated daily volume, and available factory space. We will engineer a complete pelletizing solution:

• Capacity: From 100 kg/h pilot lines to 1000 kg/h high-volume production systems

• Configuration: Single-screw (cost-effective, for PE/PP/ABS) or twin-screw (premium, for PET/PA/mixed waste)

• Pelletizing Type: Strand system (easy operation/cleaning) or water-ring system (compact/automated)

• Add-Ons: Crusher, hot washer, friction washer, centrifugal dryer, mixing silo, automatic weighing/bagging

• Power & Voltage: Fully customizable to local grid requirements (220V/380V/440V/480V, 50/60Hz)

• Export Packaging: Fumigation-free plywood crate, waterproof VCI protection, container-ready metal strapping

Standard single-screw pelletizing machines ship in 15–20 working days. Complete turnkey lines with all accessories in 25–35 working days.
