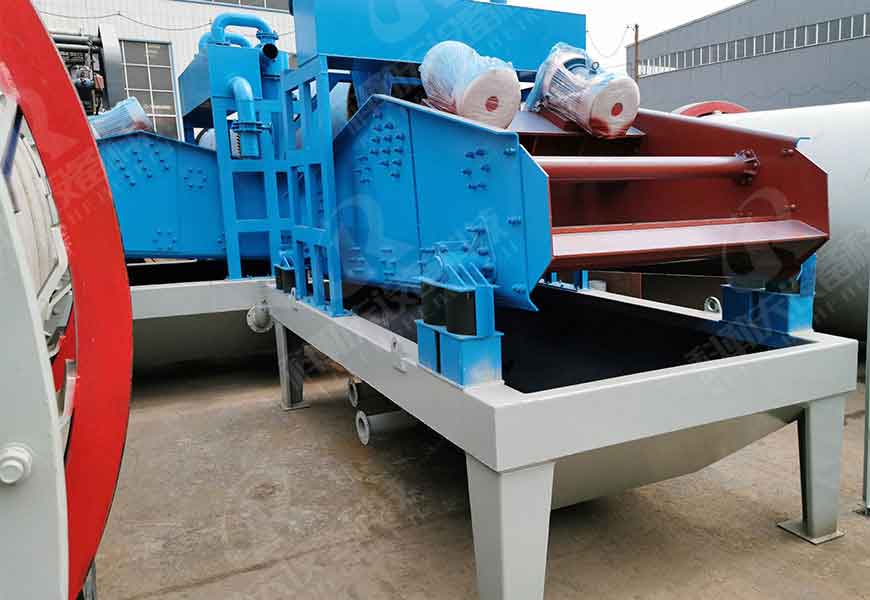

The fine sand recovery machine is a equipment developed for dehydration, deintermediation and desliming of slurry materials. The biggest feature of this machine is that it can well solve the problem of fine sand loss in the sand making industry.
advantage Durable and sturdy, with low energy consumption
Applicable materials：It is suitable for artificial sand production line, mud purification, sand aggregate system of hydropower station, glass raw material processing system, recovery of coarse coal slime in coal preparation plant, etc.
Get a Quick Quote & Free Consultation →
The fine sand recovery machine will inject the mud with a concentration of less than 40% into the hydraulic cyclone separator through the slurry pump for separation, and the separated coarse particles will enter the dewatering screen for recovery. The materials above 75cm can be recovered to a maximum extent, and the sludge and clay below 75cm can be removed. It can be used with the sand washing machine on the existing production line or can be used alone to improve the utilization rate of resources. Achieve greater benefits. Stable and reliable operation, good economic benefits.
The slurry sand water mixture is transported to the mud sand high-pressure separator, and the tail sand enriched by centrifugal classification is provided to the dehydration screen through the sand sedimentation nozzle. After dehydration through the dehydration screen, the tail sand and water are effectively separated, and a small amount of tail sand and mud are returned to the cleaning tank by the return tank. When the level of the cleaning tank is too high, it is discharged through the discharge port. Dehydration sieve recovery material weight concentration of 70%-85%. Adjusting the fineness modulus can be achieved by changing the pump speed, changing the mortar concentration, adjusting the overflow water and replacing the mortar nozzle. To complete the three functions of cleaning, dehydration and classification.
| modelModel | pumpPump | Cyclone specifications Cyclone(mm) | drainage screenVibrating Screen | handling capacityCapacity(m/h) | weightWeight(kg) | |||
| rate of workPower(kw) | sizeSize(inch) | modelModel | acreageDeck Size(㎡) | rate of workPower(kw) | ||||
| SK-06-300 | 7.5Kw | 2.0 | 300 | 06×1.5 | 0.9 | 2x0.75 | 10-40 | 2900 |
| SK-08-300 | 15Kw | 3 | 300 | 08×2.25 | 1.8 | 2x1.5 | 40-80 | 3700 |
| SK-10-350 | 18.5Kw | 4 | 350 | 10×2.25 | 2.25 | 2x1.5 | 70-120 | 4600 |
| SK-12-550 | 22Kw | 5 | 550 | 12×3.0 | 3.6 | 2x2.2 | 100-260 | 7100 |
| SK-14-750 | 37Kw | 6 | 750 | 14×3.0 | 4.2 | 2x3.0 | 180-343 | 8310 |
| SK-14-750(II) | 37Kw | 6 | 750 | 14×3.0 | 4.2 | 2x5.5 | 230-420 | 8950 |
| SK-16-900 | 45Kw | 8 | 900 | 16×3.75 | 5.25 | 2x5.5 | 250-500 | 14300 |
| SK-16-2×650 | 55Kw | 10 | 2x650 | 18×3.75 | 6.00 | 2x5.5 | 300-500 | 16700 |
| SK-18-2×750 | 75Kw | 10 | 2x750 | 18×3.75 | 6.75 | 2x7.5 | 350-600 | 19680 |
