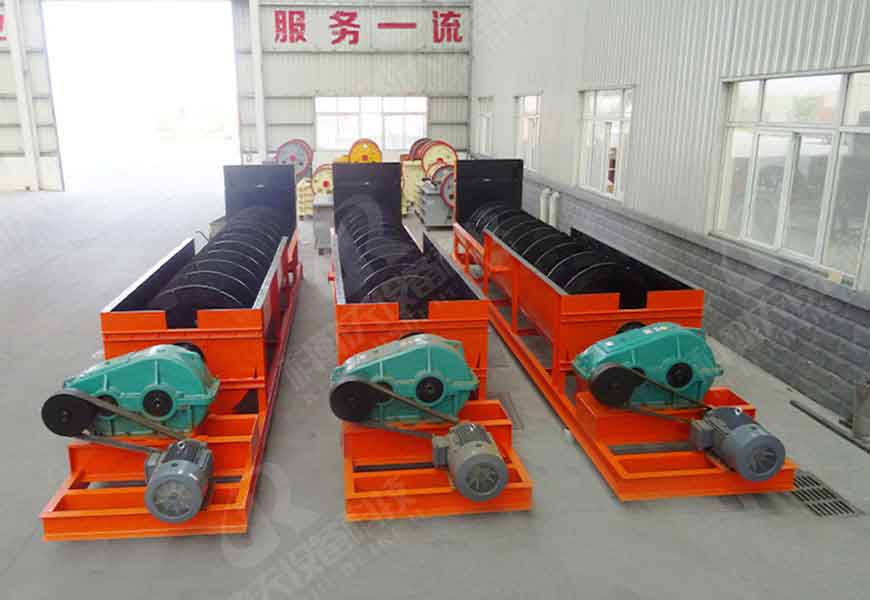

Spiral sand washing machine is a kind of sand washing equipment with very high output, also known as spiral stone washing machine. The equipment uses the propulsion effect of spiral blades to clean the soil. Compared with the wheel sand washing machine, it has a high output and a better cleaning effect on stones and sand.
advantage Durable and sturdy, with low energy consumption
Applicable materials：Quartzite, gold ore, iron ore, copper ore, ore, pulp, fine mud, cement clinker, pyrrhotite, etc
Get a Quick Quote & Free Consultation →
The spiral sand washing machine produced by our company is a kind of spiral washing equipment, which can clean and separate the stone powder soil in the sand and stone. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dehydration. It is a kind of sand washing equipment used with the sand making machine.

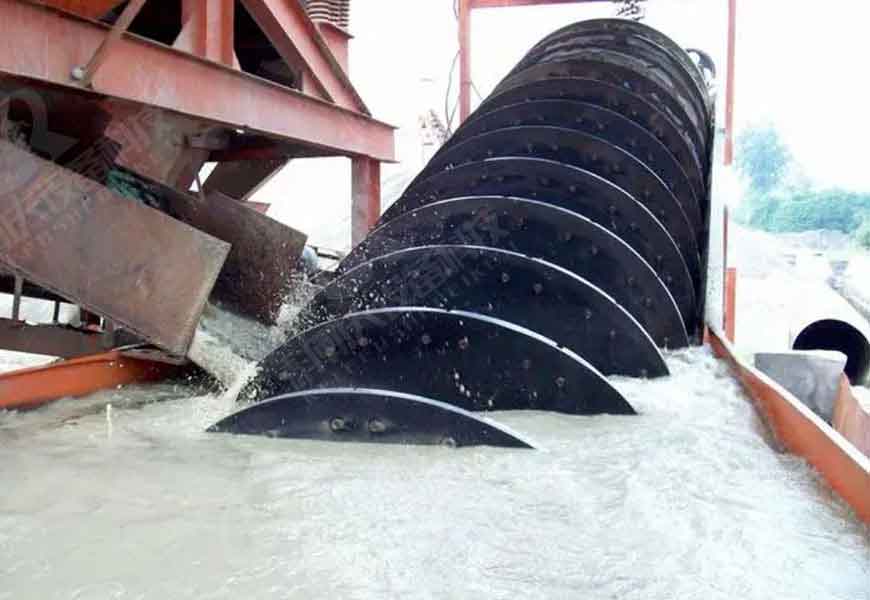

When the spiral sand washing machine works, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand and stone enter the washing tank with the feeding groove, roll under the drive of the impeller, and grind each other to remove the impurities covering the surface of the sand and stone, and destroy the water vapor layer covering the sand and sand, so as to facilitate dehydration. At the same time, add water to form a strong water flow, timely take away impurities and foreign bodies with small proportion, and discharge from the overflow outlet washing tank to complete the cleaning effect. Clean sand is taken away by the blade, and then the sand is poured into the discharge trough from the rotating impeller to complete the cleaning function of the sand and stone.
| specification | specification | HY0760 | HY1060 | HY1272 | HY1572 | |
| screw diameter（mm） | 750 | 1000 | 1200 | 1500 | 1500 | |
| Screw length(mm) | 6000 | 6000 | 7500 | 7500 | 7500 | |
| Spiral speed(r/min) | 18 | 18 | 16 | 16 | 16 | |
| handling capacity（t/h） | 5-20 | 10-30 | 30-50 | 50-80 | 80-100 | |
| Auxiliary motor(kw) | 7.5 | 11 | 15 | 22 | 30 | |
| shape size | length（m） | 7.8 | 7.8 | 9.3 | 9.3 | 9.6 |
| width（m） | 0.8 | 1.25 | 1.44 | 1.85 | 1.85 | |
| height（m） | 1.5 | 2.2 | 2.4 | 2.8 | 2.8 | |
