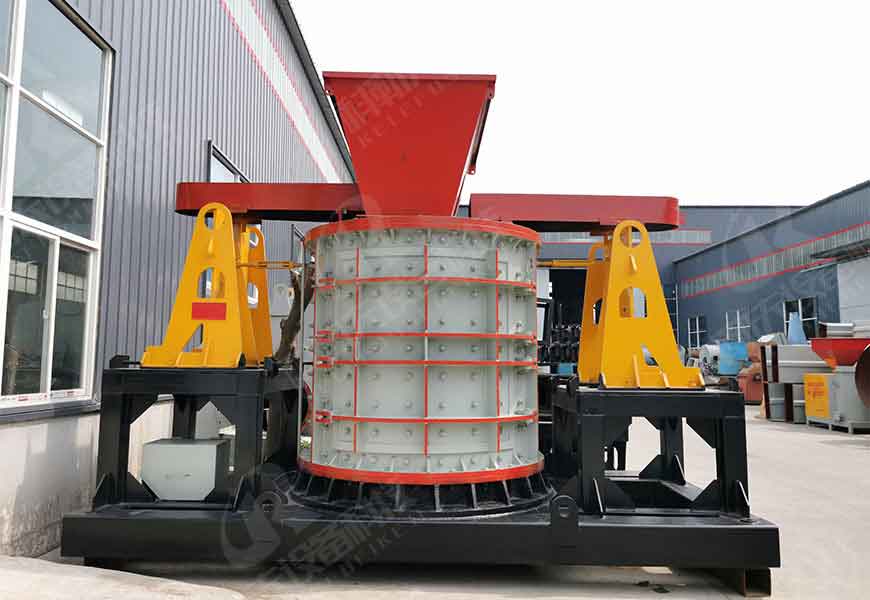

The new vertical plate hammer sand making machine, also known as the new number control sand machine, is a new generation of sand making machine equipment launched by Henan Kolev, which is characterized by the ability to achieve the granularity level of the discharge desired by the user through frequency conversion control. The board hammer is adopted, which has good sand making effection, less wearing parts and less hammer wear.
advantage Durable and sturdy, with low energy consumption
Get a Quick Quote & Free Consultation →
The vertical plate hammer number control sand machine is a kind of adjustable fine crushing sand making equipment without screen bar, which is optimized and designed on the basis of absorbing the domestic vertical shaft impact sand making machine equipment. It can be widely applied to the raw material and clinker fine crushing operation in railway, highway and airport. At the same time can also be used for dolomite, coke gem, lead zinc ore, serpentine, blast furnace slag, coal gangue, phosphate ore and other medium hardness materials of fine crushing sand operation, so the vertical plate hammer number control sand machine is especially suitable for hard limestone, dolomite, granite, basalt and other artificial sand or highway pavement stone processing and crushing.

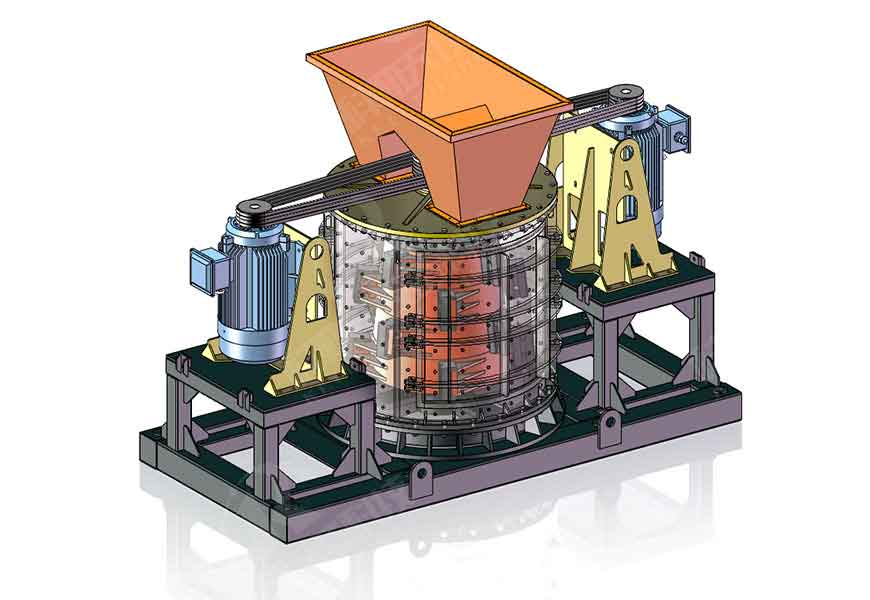

Material from the hopper into the number of control sand machine crushing chamber and installed on the inner wall of the counter plate violent collision, crushing or produce a large number of hair cracks, then the material into the conical rotor cavity, in the conical space is spirally down, by punching, extrusion, so that the cracked ore is further broken. The speed of the inner rotor of the sand machine is controlled by the intelligent program to achieve the corresponding crushing effect.
| specification model | Cylinder diameter（ inch） | production capacity（t/h） | Feed size（mm） | discharging granularity（mm） | rate of finished products（ percentage） | motor power（kw） | Variable frequency CNC cabinet(kw) |
| HYZS-29 | 29 | 10-20 | ＜50 | 3mm The following adjustable | 60-95% | 37-45 | 50 |
| HYZS-39 | 39 | 20-40 | ＜65 | 3mm The following adjustable | 60-95% | 55-75 | 90 |
| HYZS-49 | 49 | 30-60 | ＜70 | 3mm The following adjustable | 60-95% | 90-110 | 160 |
| HYZS-59 | 59 | 50-100 | ＜85 | 3mm The following adjustable | 60-95% | 132-160 | 200 |
| HYZS-69 | 69 | 80-160 | ＜100 | 3mm The following adjustable | 60-95% | 220-250 | 210 |
| HYZS-79 | 79 | 120-240 | ＜120 | 3mm The following adjustable | 60-95% | 132*2 | 280 |
