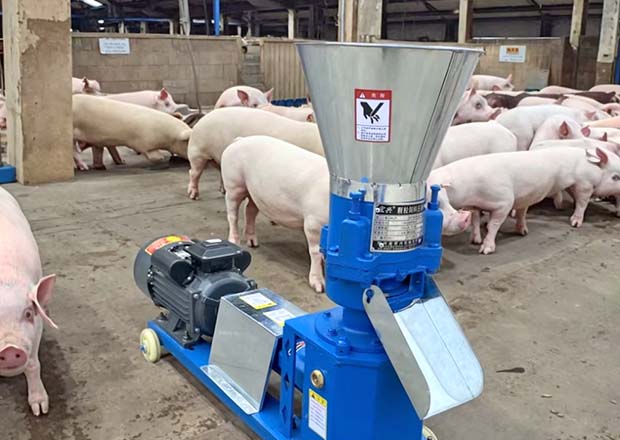

Feed Granulator

Product Introduction

The Feed Granulator is a robust, high-torque flat die pellet press engineered to compress a vast range of powders, grains, and fibrous materials into solid cylindrical pellets. Whether you need fresh, digestible feed granules for your livestock, poultry, and fish, or you want to turn agricultural waste into profitable biomass fuel pellets, this single machine handles it all. By granulating on-site, you bypass commercial feed markups, cut input costs by up to 50%, and fully control what your animals consume. The heavy-duty ZQ gearbox, hardened alloy steel rollers, and quick-swap die system ensure reliable, round-the-clock production with minimal downtime.

Why Choose Us

One Machine, Unlimited Materials: Granulate over 20 raw materials — corn, wheat bran, soybean meal, alfalfa, rice husk, straw, fish meal, sawdust, coffee shells, and more. A single granulator serves your feed mill and fuel workshop.
Slash Feed & Fuel Costs by 40–50%: Transform your own harvested grains and farm by-products into high-value pellets. No need to buy expensive compound feed or fossil fuels; your raw ingredients become your wealth.
Precision Granule Quality: 20CrMnTi alloy rollers and dies, vacuum heat-treated to HRC58-62, squeeze material into smooth, dense, and dust-free pellets. Forming rate ≥95%, with pellet density up to 1.3 g/cm³ — perfect for sinking aquafeed and clean-burning fuel.
Total Size Flexibility: Interchangeable flat dies offer pellet diameters of 2, 3, 4, 6, 8, 10, and 12mm. Make fine starter crumbs for chicks, medium granules for pigs and ducks, large cubes for cattle, or dense logs for biomass burners.
Farm-Proven Durability: Built around a ZQ-350 oil-bath gearbox, paired with NSK/SKF bearings and a 45# forged steel main shaft. Engineered for continuous daily production in dusty, high-moisture farm environments.
Safe, One-Person Operation: Delivered fully pre-assembled. Enclosed housing prevents dust leakage, while the emergency stop button and overload auto-shutoff protect the operator. Anyone can run it after a 15-minute setup video.

Technical Parameter

Detailed Technical Specifications – Hot-Selling FL-300 Feed Granulator
*(The following reflects our most-ordered “FL-300” model. Seven models are available, ranging from 150 kg/h to 1500 kg/h output.)*

Parameter	Specification
Model	FL-300 Flat Die Feed Granulator
Output Capacity	600–800 kg/h (Φ6mm die, corn base, moisture ≤13%) 300–500 kg/h (Φ2mm fine die, aquafeed formula)
Pellet Diameter Range	2 / 3 / 4 / 6 / 8 / 10 / 12 mm (flat dies, easily swapped)
Forming Rate	≥95%
Pellet Density	1.1–1.3 g/cm³
Main Motor	37 kW (50 HP), 3-phase, custom voltage
Roller & Die Material	20CrMnTi alloy steel, HRC58-62 hardness
Die Service Life	Approx. 800–1,000 tons (larger dies); 600–800 tons (fine dies)
Rollers	2 (free extra set included)
Bearings	NSK / SKF
Gearbox	ZQ-350 heavy-duty, oil-bath, noise ≤75 dB
Feeding	Gravity hopper (optional screw conveyor)
Machine Weight	720 kg net / ~850 kg gross
Dimensions (L×W×H)	1650×750×1600 mm
Drive Options	Electric / Diesel / PTO
Additional Models	FL-200 (150-250 kg/h) through FL-400 (1000-1500 kg/h), and ring die granulators up to 20 ton/h

Proven Results Backed by Data

Proven Performance Backed by Global Sales Data
Since 2009, our feed granulators have been deployed in over 45 countries. Instead of fabricated quotes, here are the aggregated findings from our 2022–2024 after-sales audits with 150+ farms and processors:

40–50% Feed/Fuel Cost Savings: Farmers granulating their own corn and soybean meal cut their monthly commercial feed purchases in half. Biomass users report turning free waste into a sellable fuel source.
15% Faster Livestock Growth: Fresh, self-made granules retain more natural oils and nutrients than stale commercial feed, directly accelerating broiler and pig weight gain.
98% Operational Reliability: With simple greasing, users average 350 production days per year. The heavy gearbox and sealed bearings withstand harsh agricultural conditions.
6–12 Month Return on Investment: The vast majority of small farm and workshop clients recover the entire machine cost in under one year solely from savings on feed or fuel input costs.

Applicable

Applications: Endless Possibilities with a Feed Granulator
This feed granulator is your all-in-one solution for:

Complete Animal Feed Granules: Chickens (broilers & layers), ducks, turkeys, pigs, cattle, goats, sheep, horses, rabbits, tilapia, catfish, shrimp, and more.
Biomass Fuel Pellets: Sawdust, wood shavings, rice husk, coffee husk, peanut shell, bagasse, straw. Produce high-calorific fuel for heating and cooking stoves.
Fertilizer & Recycling: Compost, manure, and organic waste can also be granulated for controlled nutrient release.

Switching between feed production and fuel production takes only a die change and a quick cleaning — maximum utilization year-round.

FAQ

Is a feed granulator the same as a feed pellet machine? Yes. In the agricultural industry, "feed granulator" and "feed pellet machine" refer to the same type of equipment. Our flat die granulator presses ground meal into hard, cylindrical granules ideal for both feeding and burning.

Can I make small pellets for my fish and large cubes for my cows on the same granulator? Absolutely. The die is quickly removable. Use a 2mm or 3mm die for fish and chicks, a 6mm die for pigs and sheep, and an 8mm or 12mm die for cattle. We supply a full die set if you raise multiple species.

What if I want to produce floating fish feed? This flat die granulator specializes in hard sinking feed (density ≥1.1 g/cm³), which is perfect for tilapia, catfish, and shrimp. For floating or slow-sinking extruded fish feed, ask about our twin-screw extruder line.

How do I produce biomass fuel pellets? Use dry sawdust, wood shavings, or straw with 10–15% moisture. Install a 6mm or 8mm die, and the granulator will produce dense, high-BTU fuel pellets. It works very well for wood waste recycling businesses.

Is maintenance complicated? Not at all. It mainly involves daily greasing of bearings and cleaning the die after use. The rollers and dies are replaceable wear parts that last 600–1,000 tons of output. We stock all spares and provide video troubleshooting support.

Order & Shipping Information

Order & Customization
Tailor your feed granulator to your exact operational needs:

Power Customization: 220V/380V/440V/480V electric motor, or diesel engines (Lister, Petter, Changchai), or PTO drive shaft
Output Selection: Models from 150 kg/h for smallholdings to 1500 kg/h for commercial feed workshops; larger ring die lines up to 20 t/h
Die Package: Choose the pellet sizes you need; we’ll include the corresponding dies and a free spare roller set
Color & Branding: OEM color and logo printing welcome
Export Packing: Fumigated wooden crate with VCI anti-rust film, bolted and metal-strapped for global container shipping
Standard models are dispatched within 7 working days. Contact us for a customized solution.

Get Full Control Over Your Feed and Fuel Production
Don’t let high feed prices or expensive fuel limit your farm’s profitability. Turn your raw materials into valuable pellets with a single investment in a Feed Granulator. Send an inquiry now and receive a detailed quotation, production photos, and a free copy of our “Pellet Making Business Starter Guide” within 12 hours.
