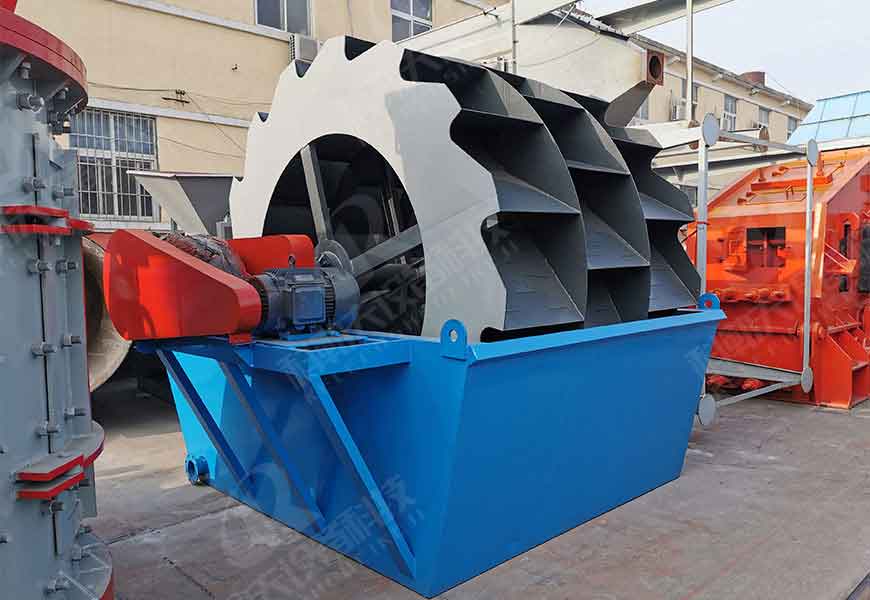

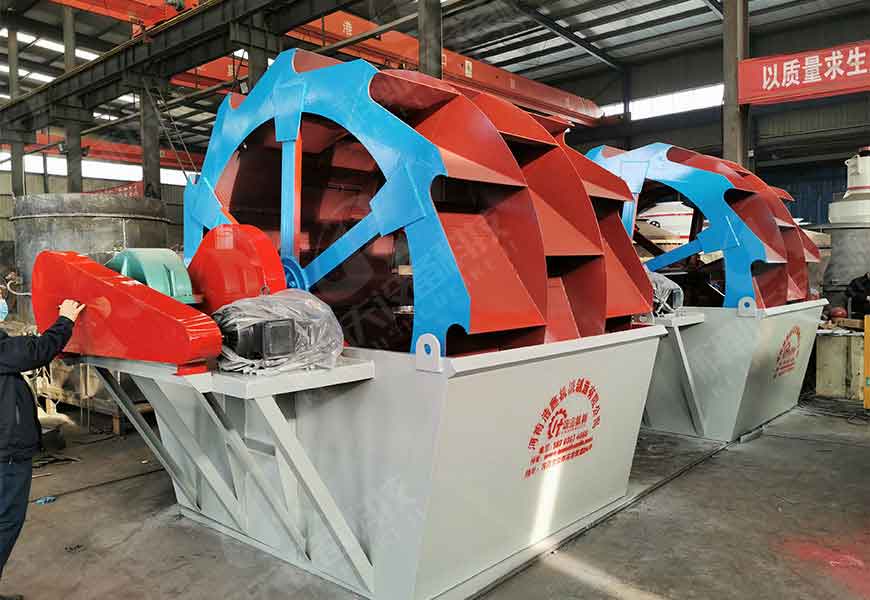

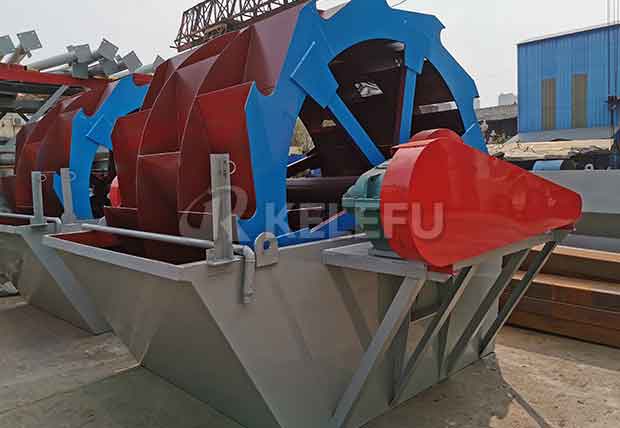

Wheel sand washing machine is a high-yield sand washing equipment developed by our company on the basis of adopting advanced sand washing technology at home and abroad and combining with the actual situation of domestic sand and gravel industry. With cleaning height, reasonable structure, large output, less sand loss in the sand washing process of the sand washing machine, it is the ideal choice for upgrading the domestic sand washing industry.
advantage Durable and sturdy, with low energy consumption
Applicable materials：River sand, pebbles, perlite, artificial sand washing and so on
Get a Quick Quote & Free Consultation →
For the machine sand, stone powder, mountain sand and other materials are deslimed, impurity removal, screening, to achieve the purpose of purification, in the process of washing less fine sand loss, high cleaning degree, more water saving
When the wheel sand washing machine is working, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand and stone enter the washing tank with the feeding groove, roll under the drive of the impeller, and grind each other to remove the impurities covering the surface of the sand and stone, and destroy the water vapor layer covering the sand and stone, so as to facilitate dehydration; At the same time, add water to form a strong water flow, timely take away impurities and foreign bodies with small proportion, and discharge from the overflow outlet washing tank to complete the cleaning effect. Clean sand and stone are taken away by the blade and poured into the discharge tank from the rotating impeller to complete the cleaning of sand and stone.
| specification | Capacity(t/h) | motor power (kw) |
| 3020 | 80-200 | 8p 11kw |
| 3121 | 90-260 | 8p 11kw |
