Spiral Sand Washing Machine

icon-mark03High environmental standards icon-mark03Persist in meticulousness

Spiral Sand Washing Machine

advantage Durable and sturdy, with low energy consumption

  • Capacity20-240t/h
  • Output moistureAdjustable

Applicable materials:Quartzite, gold ore, iron ore, copper ore, ore, pulp, fine mud, cement clinker, pyrrhotite, etc

model complete Online Chat Price preference

Spiral Sand Washing Machine

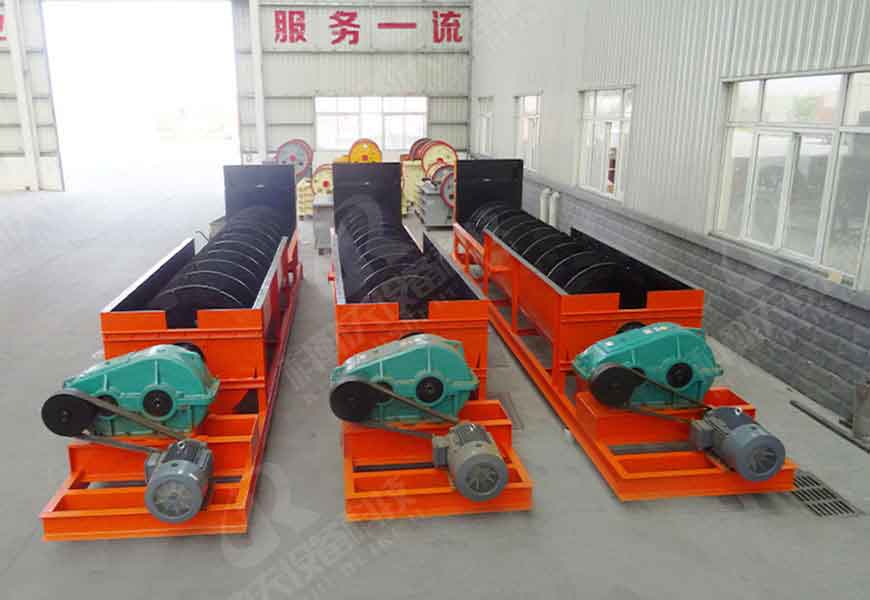

The spiral sand washing machine produced by our company is a kind of spiral washing equipment, which can clean and separate the stone powder soil in the sand and stone. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dehydration. It is a kind of sand washing equipment used with the sand making machine.

Spiral Sand Washing Machine

Performance Feature

  • Spiral Sand Washing Machine

    Large processing capacity, high cleaning rate, small power consumption, good sealing structure, fully closed transmission device, adjustable weir plate.

  • Spiral Sand Washing Machine

    Product efficiency is high, durable, cleaning, dehydration effect is good, fine grain products to maintain stability.

  • Spiral Sand Washing Machine

    There is less sand loss in the sand washing process, especially the transmission part of the spiral sand washing machine is isolated from water and sand.

  • Spiral Sand Washing Machine

    The failure rate is much lower than that of the current commonly used sand washing machine, which is the choice for upgrading the domestic sand washing industry.

Working Principle

Spiral Sand Washing Machine

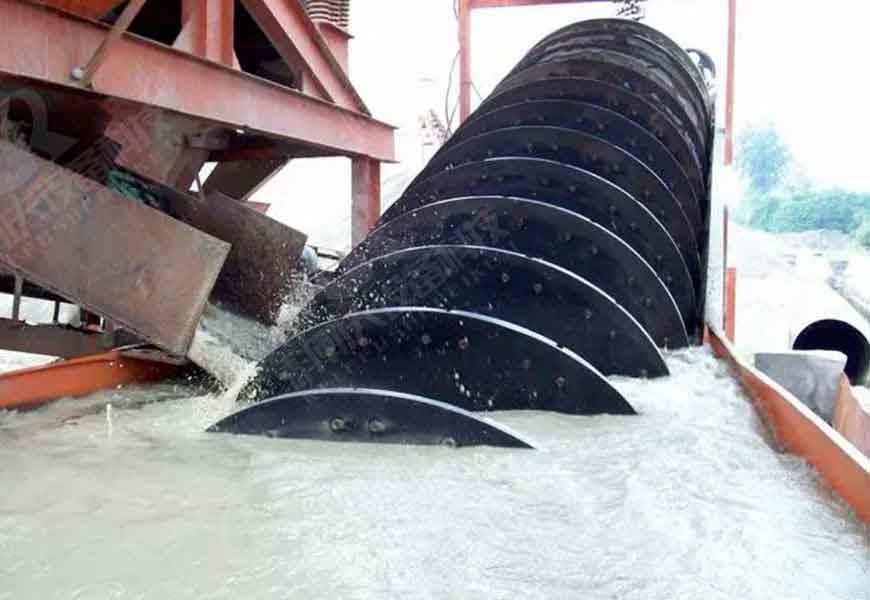

When the spiral sand washing machine works, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand and stone enter the washing tank with the feeding groove, roll under the drive of the impeller, and grind each other to remove the impurities covering the surface of the sand and stone, and destroy the water vapor layer covering the sand and sand, so as to facilitate dehydration. At the same time, add water to form a strong water flow, timely take away impurities and foreign bodies with small proportion, and discharge from the overflow outlet washing tank to complete the cleaning effect. Clean sand is taken away by the blade, and then the sand is poured into the discharge trough from the rotating impeller to complete the cleaning function of the sand and stone.

Technical Parmeter

  • Spiral Sand Washing Machine
Spiral sand washing machine equipment product technical parameters
specification specificationHY0760HY1060HY1272HY1572
screw diameter(mm)7501000120015001500
Screw length(mm)60006000750075007500
Spiral speed(r/min)1818161616
handling capacity(t/h)5-2010-3030-5050-8080-100
Auxiliary motor(kw)7.511152230
shape
        size
length(m)7.87.89.39.39.6
width(m)0.81.251.441.851.85
height(m)1.52.22.42.82.8
