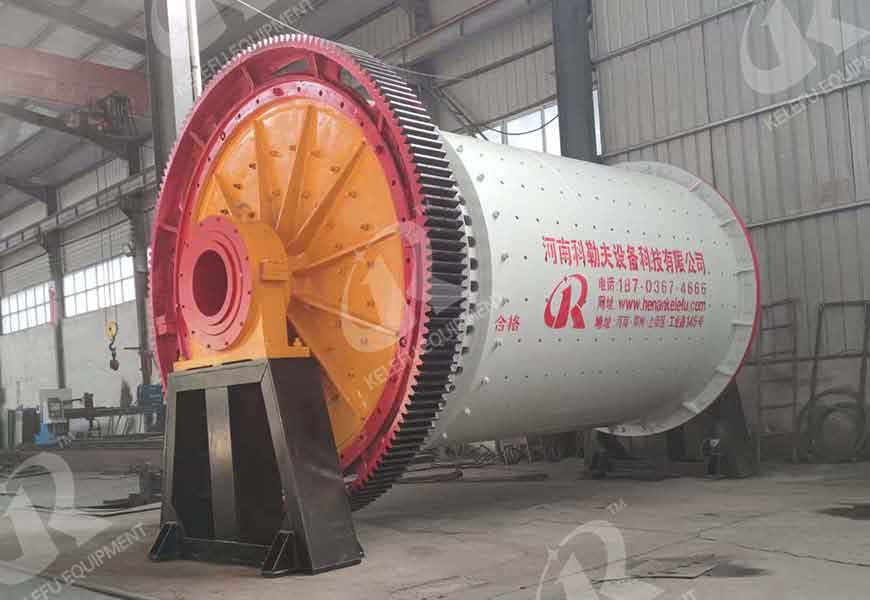

Rod Grinder

icon-mark03High environmental standards icon-mark03Persist in meticulousness

Rod Grinder

advantage Durable and sturdy, with low energy consumption

  • Capacity50-200t/h
  • Output moistureAdjustable

Applicable materialss:abrasive, refractory materials, cement, steel sand, slag powder, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate and other hard and brittle materials of fine and medium crushed.

model complete Online Chat Price preference

Rod Grinder

Ball mill are sometimes used in mineral processing, and their technical standards are not high, which can adapt to the sand making needs of various materials. It is widely used in the construction sand processing and production.Therefore, the working characteristics of the two are obviously different, and the discharge particle size is relatively uniform. Currently, there are no specifications for rod mills for machine-made sanded steel rods. Three of the more common include ball mills, rod sanders and autogenous mills.

Rod Grinder

Performance Feature

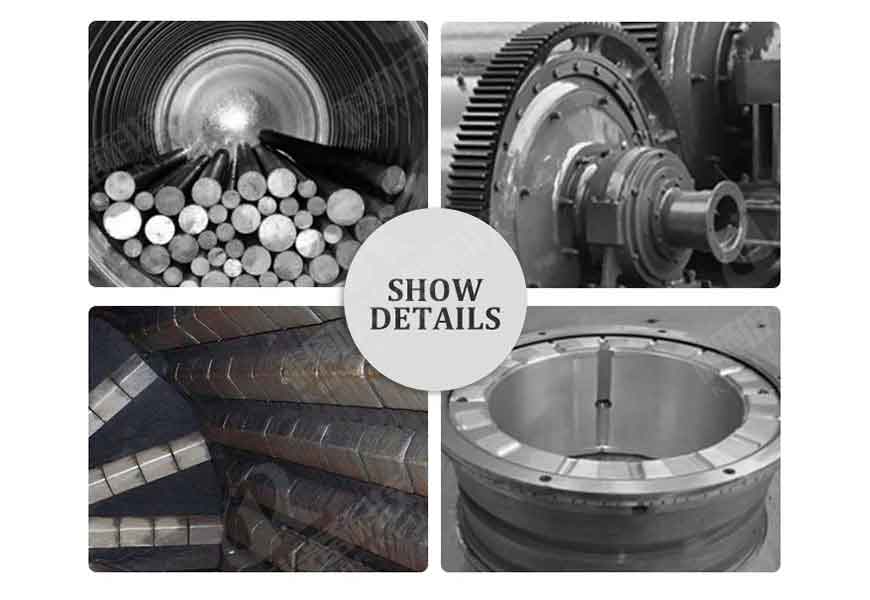

  • Rod Grinder

    There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.

  • Rod Grinder

    Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.

  • Rod Grinder

    Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.

  • Rod Grinder

    The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.

Working Principle

Rod Grinder

The material enters the first bin of the mill by the feeding device through the feeding hollow shaft. There are stepped lining plates or corrugated lining plates in the bin, which are loaded with steel balls of different specifications. The centrifugal force generated by the rotation of the cylinder will bring the steel balls to a certain height and then fall down, which will have a pounding and grinding effect on the material. After the material is roughed in the first warehouse, it enters the second warehouse through the single compartment plate, which is inlaid with a flat liner plate and contains steel balls to further grind the material. The powder is discharged through the discharge grate plate to complete the grinding operation.

Technical Parmeter

  • Rod Grinder
Model specification Cylinder diameter(mm) Cylinder length(mm) Cylinder speed(r/min) Rod loading weight(t) Feed size(mm) Discharge size(mm) Output(t/h) Motor power(Kw) Weight(t)
KLF2436 2400 3600 19 28 <25 0. 8-5.0 26-65 280 58
KLF2736 2700 3600 17.5 42 <25 0. 8-5.0 30-125 400 86
KLF2740 2700 4000 17.5 47 <25 0. 8-5.0 40-150 400 91
KLF3040 3000 4000 16.2 51 <25 0. 8-5.0 62-165 500 130
KLF3245 3200 4500 15.5 56 <25 0. 8-5.0 70-210 630 137
KLF3248 3200 4800 15.5 60 <25 0. 8-5.0 75-240 710 142
KLF3645 3600 4500 14.5 78 <25 0. 8-5.0 83-260 1000 168
KLF3654 3600 5400 14.5 94 <25 0. 8-5.0 100-330 1120 192
