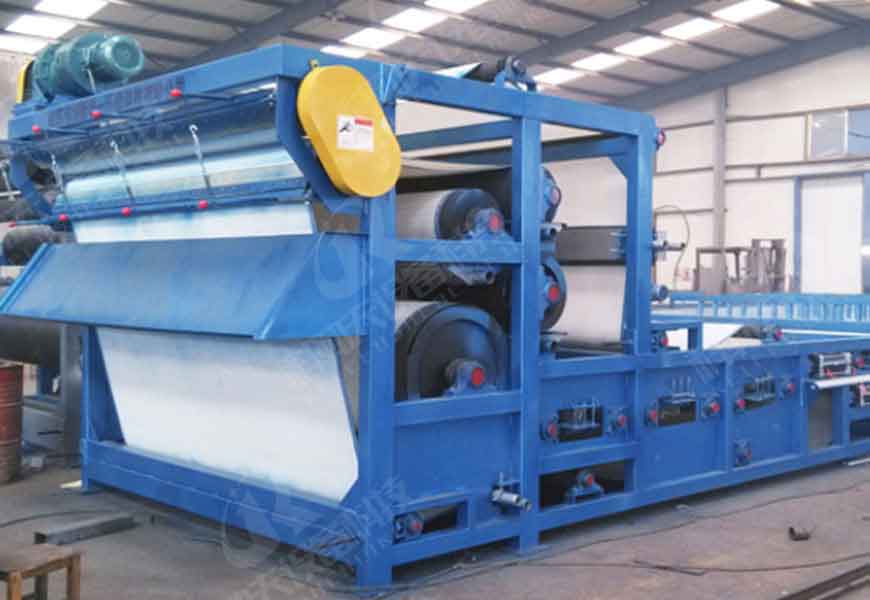

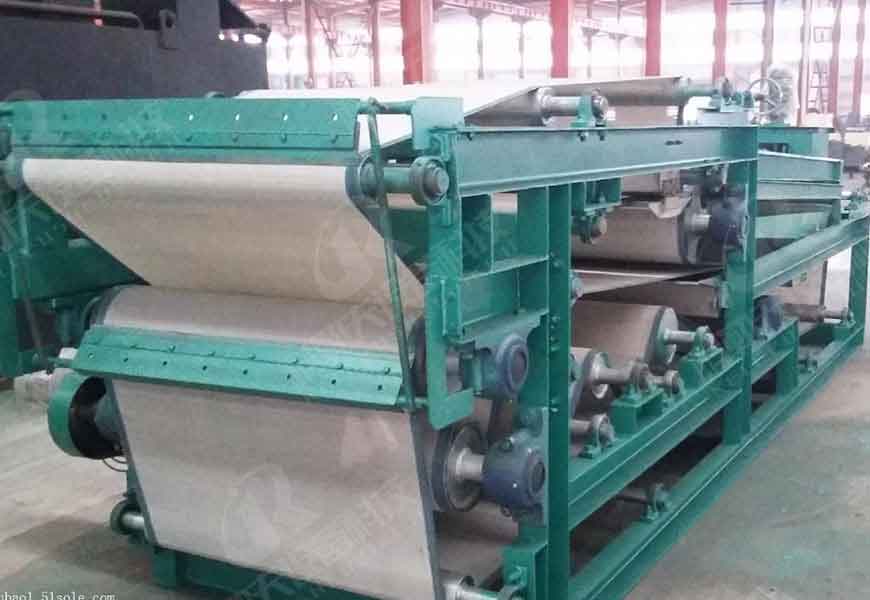

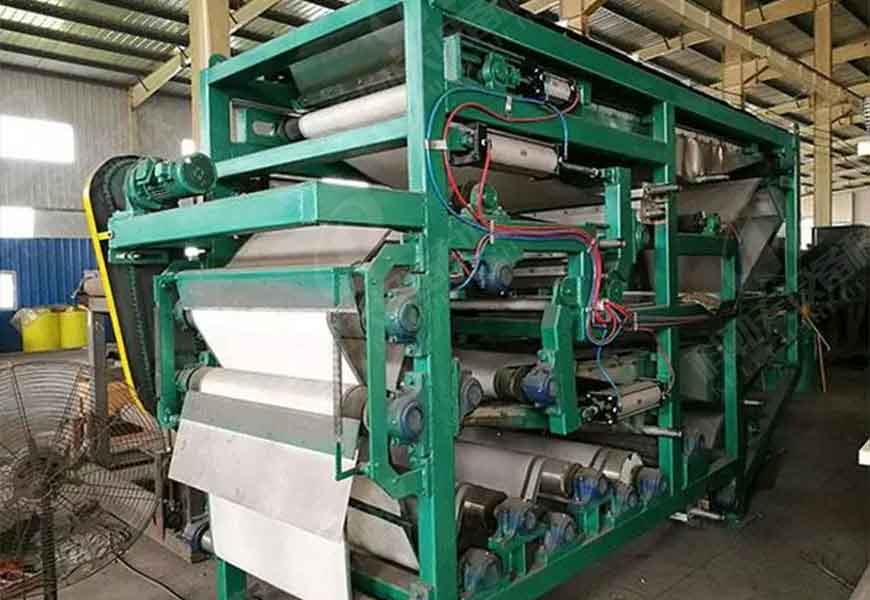

Belt filter press is a kind of dewatering equipment. It is very suitable for dewatering the sludge produced by sewage treatment and pressing it into mud cake. The equipment processing capacity is large, dehydration rate is high, long service life, the machine can also be used for slurry concentration, black liquor extraction process. The equipment is strictly prohibited for dewatering related materials containing particulate foreign matter, otherwise it will damage the filter belt.
advantage Durable and sturdy, with low energy consumption
Applicable materials：It is suitable for dewatering high humidity slag materials such as potato residue, bean residue, starch residue, medicine residue and fruit residue
Get a Quick Quote & Free Consultation →
Belt filter press is a new model successfully developed by Kolev on the basis of the introduction of foreign filter technology. The equipment is a kind of filter press equipment that removes water in the slurry by winding two filter belts on a series of roll wheels of different sizes in sequence and using the extrusion and shearing action between the filter belts. It has the advantages of continuous operation, high degree of automation, energy saving, convenient use and maintenance, etc. It is an ideal equipment for sludge dewatering and reducing treatment.
The sludge layer is carried by two tensioned filter belts, and the water in the sludge is extruded from the roller arranged regularly, so as to form a solid mud cake and realize the sludge dehydration. Sludge dewatering needs to go through three stages: They are gravity dewatering area, pressure dewatering area and pressure dewatering area. The flocculated sludge enters the filter press and removes most of the free water in the sludge under the action of gravity. Then in the pressure dewatering stage, the sludge is squeezed and dehydrated by the upper and lower press cloth.
| model | Broad Band | Main engine power （Kw） | Flush net water pressure （Hpa） | Compressed air consumption （㎡/min） | compressed air pressure （bar） | size： length* width* height（mm） | Feed water content% | Moisture content of slag% | Feed handling capacity T/D |
| DYLT1000 | 1000 | 2.2 | ≥0.5 | 0.2 | 4.0 | 5180*1640*2280 | 76~90% | 50~70 | 30~40 |
| DYLT1500 | 1500 | 3.0 | ≥0.5 | 0.3 | 4.0 | 5180*2240*2280 | 76~90% | 50~70 | 40~50 |
| DYLT2000 | 2000 | 4.0 | ≥0.5 | 0.3 | 4.0 | 5180*2640*2280 | 76~90% | 50~70 | 50~70 |
| DYLT2500 | 2500 | 5.5 | ≥0.5 | 0.3 | 4.0 | 5180*3140*2280 | 76~90% | 50~70 | 70~90 |
| DYLT3000 | 3000 | 7.5 | ≥0.5 | 0.3 | 4.0 | 5180*3640*2280 | 76~90% | 50~70 | 90~120 |
